Quick Freezing Tunnel Freezer

Quick Freezing Tunnel Freezer
Quick Freezing Tunnel Freezer Quick Freezing Tunnel Freezer Quick Freezing Tunnel Freezer Quick Freezing Tunnel Freezer

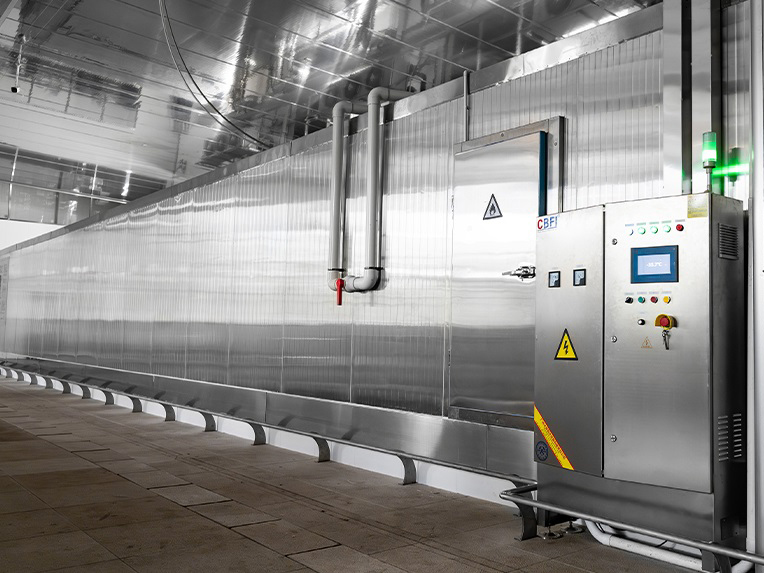

This rectangular tunnel freezer is designed for fast freezing; cold air circulates within it, rapidly decreasing the temperature of any food passing through until it is solidly frozen.

This tunnel freezer has a straightforward design with rapid freezing speed capable of running continuously as part of a production line. In 60 minutes, food is frozen to a central temperature as low as -18°C and an input/output temperature range of +15°C/-18°C. Constructed to meet HACCP guidelines, this equipment guarantees food hygiene and safety.

Request a Quote
Features
  • Manufactured with double-sided SUS304 insulated panels filled with polyurethane foam, to ensure excellent thermal retention. The maintenance doors are equipped with sealing and heating systems to prevent icing, ensuring operational efficiency
  • Designed to freeze products quickly and minimize the formation of large ice crystals, this freezer preserves the quality of the products as close to their original state as possible
  • The conveyor belt is made from SUS304 stainless steel, with a high-strength, stainless steel wire mesh, ensuring long-lasting durability and hygiene
  • Made from industrial-grade aluminum alloy, the evaporator features tightly arranged aluminum tubes and fins, enhancing its heat exchange capabilities for superior freezing performance
  • The control cabinet, made with SUS304 stainless steel, offers options for relay, PLC, or touchscreen controls to satisfy various operational preferences and requirements
Specifications
Conveyor Belt Width 1500-4000mm
Belt Material 304/POM
Infeed Belt Length 1500mm
Outfeed Belt Length 1000mm
Conveyor Belt Cleaning CIP
Control Cabinet Control panel with PLC touch screen control, 304 stainless steel enclosure
Refrigerant Freon, ammonia, carbon dioxide
Evaporator Aluminum/stainless steel tube, aluminum/aluminum-magnesium alloy fins
Defrost method Water flushing/hot air defrosting
Freezer/Cooldown Time Adjustable with variable frequency
Applications
  • Aquatic products: such as raw shrimp, shrimp, fish, and shells
  • Meat: Poultry and fresh meat.
  • Flour products: dumplings, stuffed buns, glutinous rice balls, and spring rolls.
  • Prepared foods: salted products and prepared dishes.
  • Quick Freezing Tunnel Freezer
  • Quick Freezing Tunnel Freezer
  • Quick Freezing Tunnel Freezer
  • Quick Freezing Tunnel Freezer
  • Quick Freezing Tunnel Freezer
  • Quick Freezing Tunnel Freezer
  • Quick Freezing Tunnel Freezer
  • Quick Freezing Tunnel Freezer
Basic Configurations
Quick Freezing Tunnel Freezer
  • Feeding rack
  • Insulation storage body
  • Air outlet
  • Evaporator
  • Circulating fan
  • Stainless steel frame
  • Transmission motor
  • Liquid supply pipe
  • Air return pipe
  • Mesh belt/plate belt
  • Quick Freezing Tunnel Freezer
  • Quick Freezing Tunnel Freezer
  • Quick Freezing Tunnel Freezer
Tags
Tunnel freezerindividual quick freezing food freezing industrial freezing equipmentIQF freezer
Project Cases
  • Quick Freezing Tunnel Freezer in Vietnam
    Quick Freezing Tunnel Freezer in Vietnam
  • 2.5 tons Tunnel Freezer for Broccoli in Gansu
    2.5 tons Tunnel Freezer for Broccoli in Gansu
  • 2.5 tons Tunnel Freezer in Zhangzhou, Fujian
    2.5 tons Tunnel Freezer in Zhangzhou, Fujian
