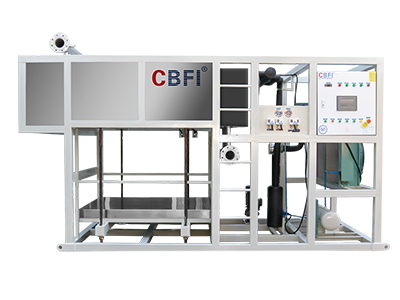

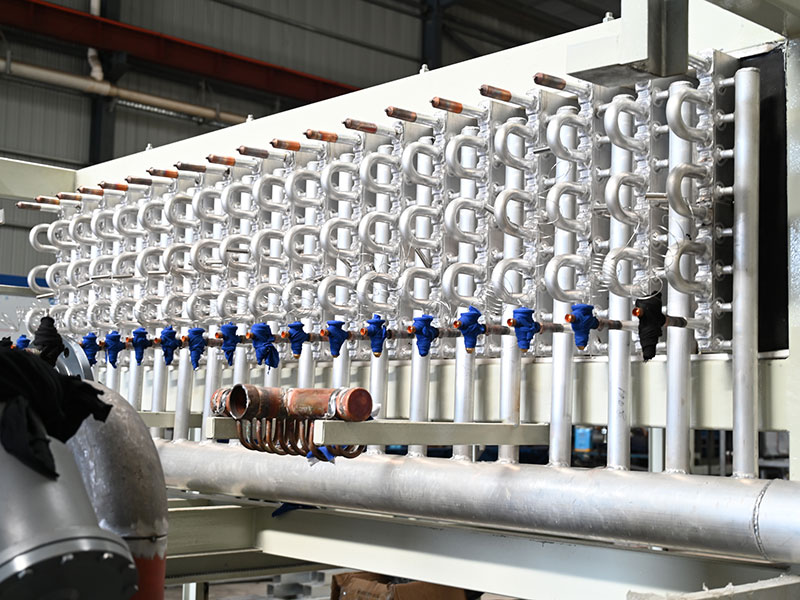

Our automatic block ice machine is a type of direct cooling block ice machines (also called direct evaporation block ice machines). By adopting aluminum evaporator that features efficient thermal conductivity, this block ice machine with direct evaporation system works based on the principle of direct heat exchange with refrigerant, therefore fast ice formation is achieved and the block ice has slow melt rate.

The block ice machine is capable of accomplishing automatically adding water into ice molds, automatic ice making and automatic ice harvesting, eliminating the need for manual operation. This direct cooling block ice machine can make ice block directly without via brine water, the ice molds can be used for a long time without change. Ice blocks produced by this machine are safe and sanitary, which completely conform to food standards. Modular design of the ice machine provides easy operation, small footprint and simple installation, all users have to do is supply the water and electricity.

  • Automatic Block Ice Machine, ABI Series
  • Automatic Block Ice Machine, ABI Series
Details
  • Automatic Block Ice Machine, ABI Series
  • Automatic Block Ice Machine, ABI Series
  • Automatic Block Ice Machine, ABI Series
  • Automatic Block Ice Machine, ABI Series
  • Automatic Block Ice Machine, ABI Series
  • Automatic Block Ice Machine, ABI Series
Features
    1. Automatic Block Ice Machine, ABI Series

    2. High heat exchange efficiency, safe and environmentally friendly

    1. Automatic Block Ice Machine, ABI Series

    2. Automatically adding water into ice molds, automatic ice harvesting

    1. Automatic Block Ice Machine, ABI Series

    2. Ice blocks are safe and sanitary, conform to food standards

  • Compressor Brand: Bitzer / Hanbell; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling;
  • Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
  • Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating)：-18℃.
  • (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
  • (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there is any technical change.)

ABI10 Automatic Block Ice Machine, ABI Series

ABI10 Automatic Block Ice Machine, ABI Series
ABI10 Automatic Block Ice Machine, ABI Series ABI10 Automatic Block Ice Machine, ABI Series ABI10 Automatic Block Ice Machine, ABI Series
  • Production (T/24h): 1
  • Compressor Power (kW): 3.88
  • Lifting Motor (kW): 1.1
  • Ice Weight (KG): 5/ 10
  • Ice Dimension (L*W*H): 110*90*550/ 225*90*550 mm
  • Machine Dimension (L*W*H): 4100*1280*1700 mm
Inquiry

ABI20 Automatic Block Ice Machine, ABI Series

ABI20 Automatic Block Ice Machine, ABI Series
ABI20 Automatic Block Ice Machine, ABI Series ABI20 Automatic Block Ice Machine, ABI Series ABI20 Automatic Block Ice Machine, ABI Series
  • Production (T/24h): 2
  • Compressor Power (kW): 7.04
  • Lifting Motor (kW): 1.1
  • Ice Weight (KG): 5/ 10
  • Ice Dimension (L*W*H): 110*90*550/ 225*90*550 mm
  • Machine Dimension (L*W*H): 3000*1100*1700 mm
Inquiry

ABI30 Automatic Block Ice Machine, ABI Series

ABI30 Automatic Block Ice Machine, ABI Series
ABI30 Automatic Block Ice Machine, ABI Series ABI30 Automatic Block Ice Machine, ABI Series ABI30 Automatic Block Ice Machine, ABI Series
  • Production (T/24h): 3
  • Compressor Power (kW): 9.44
  • Lifting Motor (kW): 1.1
  • Ice Weight (KG): 10/ 15
  • Ice Dimension (L*W*H): 225*90*550/ 245*120*560 mm
  • Machine Dimension (L*W*H): 4600*1380*1900/ 4860*1700*1900 mm
Inquiry

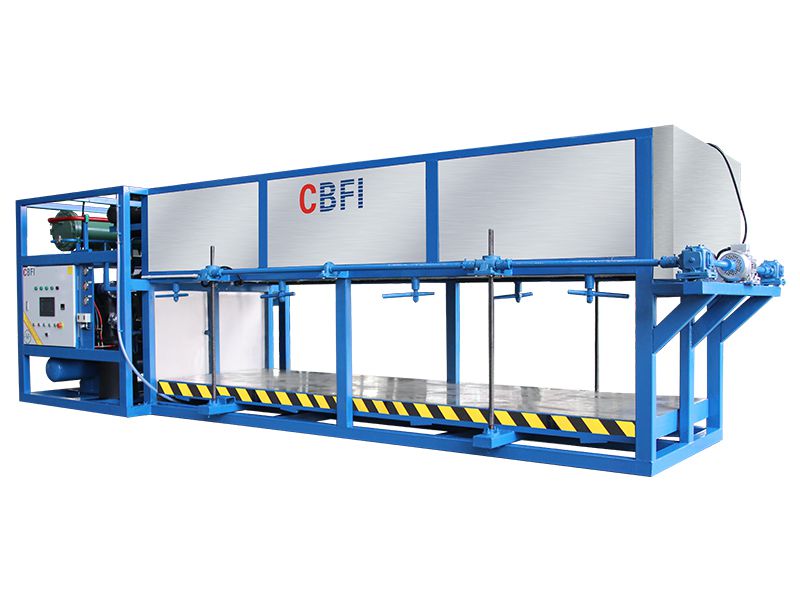

ABI50 Automatic Block Ice Machine, ABI Series

ABI50 Automatic Block Ice Machine, ABI Series
ABI50 Automatic Block Ice Machine, ABI Series ABI50 Automatic Block Ice Machine, ABI Series ABI50 Automatic Block Ice Machine, ABI Series
  • Production (T/24h): 4
  • Compressor Power (kW): 18.9
  • Lifting Motor (kW): 1.5
  • Ice Weight (KG): 20/ 25
  • Ice Dimension (L*W*H): 225*90*550/ 315*120*760 mm
  • Machine Dimension (L*W*H): 4800*1860*1900/ 5200*2140*2250 mm
Inquiry

ABI80 Automatic Block Ice Machine, ABI Series

ABI80 Automatic Block Ice Machine, ABI Series
  • Production (T/24h): 8
  • Compressor Power (kW): 28.4
  • Lifting Motor (kW): 3
  • Ice Weight (KG): 25/ 30
  • Ice Dimension (L*W*H): 315*120*760/ 305*145*760 mm
  • Machine Dimension (L*W*H): 7100*2140*2300/ 8580*2200*2300mm
Inquiry

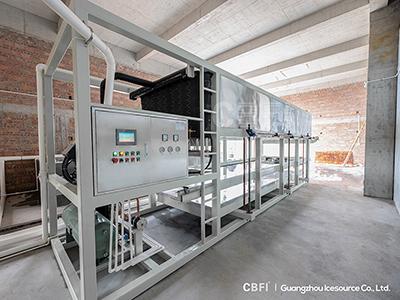

ABI100 Automatic Block Ice Machine, ABI Series

ABI100 Automatic Block Ice Machine, ABI Series
ABI100 Automatic Block Ice Machine, ABI Series ABI100 Automatic Block Ice Machine, ABI Series ABI100 Automatic Block Ice Machine, ABI Series
  • Production (T/24h): 10
  • Compressor Power (kW): 39.1
  • Lifting Motor (kW): 4
  • Ice Weight (KG): 25/ 30
  • Ice Dimension (L*W*H): 315*120*760/ 305*145*760 mm
  • Machine Dimension (L*W*H): 8100*2140*2300/ 10200*2200*2300 mm
Inquiry

ABI150 Automatic Block Ice Machine, ABI Series

ABI150 Automatic Block Ice Machine, ABI Series
ABI150 Automatic Block Ice Machine, ABI Series ABI150 Automatic Block Ice Machine, ABI Series ABI150 Automatic Block Ice Machine, ABI Series
  • Production (T/24h): 15
  • Compressor Power (kW): 51.1
  • Lifting Motor (kW): 5.5
  • Ice Weight (KG): 30/ 40
  • Ice Dimension (L*W*H): 500*2000*2300 mm
  • Machine Dimension (L*W*H): 11200*2200*2500/ 10800*2200*2500 mm
Inquiry

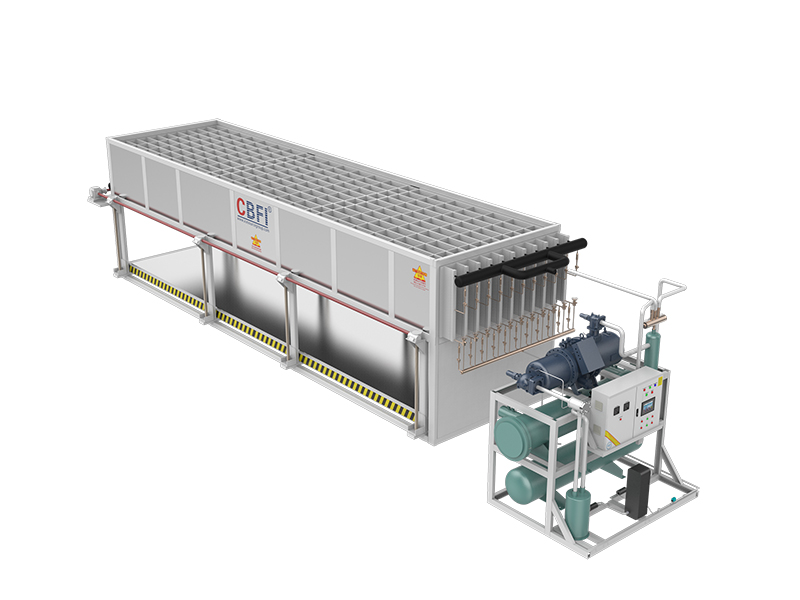

ABI200 Automatic Block Ice Machine, ABI Series

ABI200 Automatic Block Ice Machine, ABI Series
  • Production (T/24h): 20
  • Compressor Power (kW): 39.1
  • Lifting Motor (kW): 7.5
  • Ice Weight (KG): 40/ 50
  • Ice Dimension (L*W*H): 315*120*760/ 305*145*760 mm
  • Machine Dimension (L*W*H): 11500*2300*2500 mm (all-in-one)/ 2800*2000*2300 (Compressor Unit), 7800*2240*2500*2 mm (Evaporator)
Inquiry

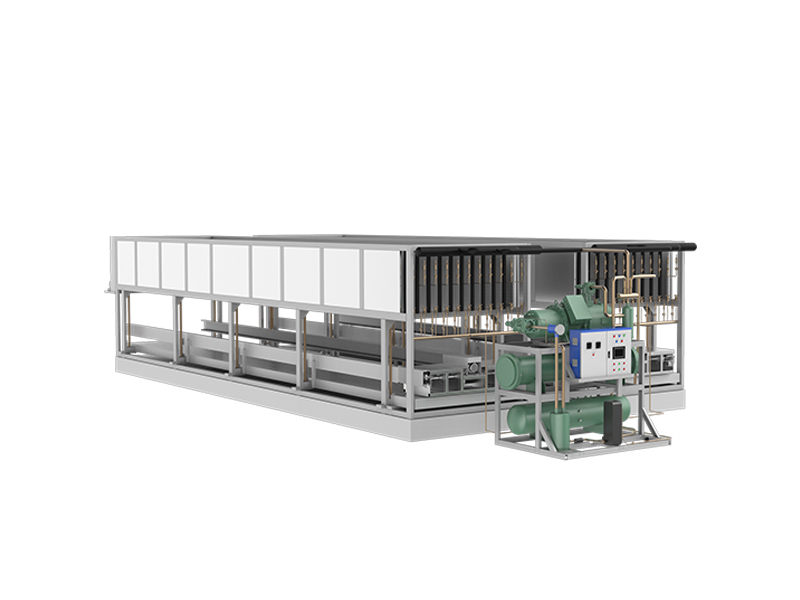

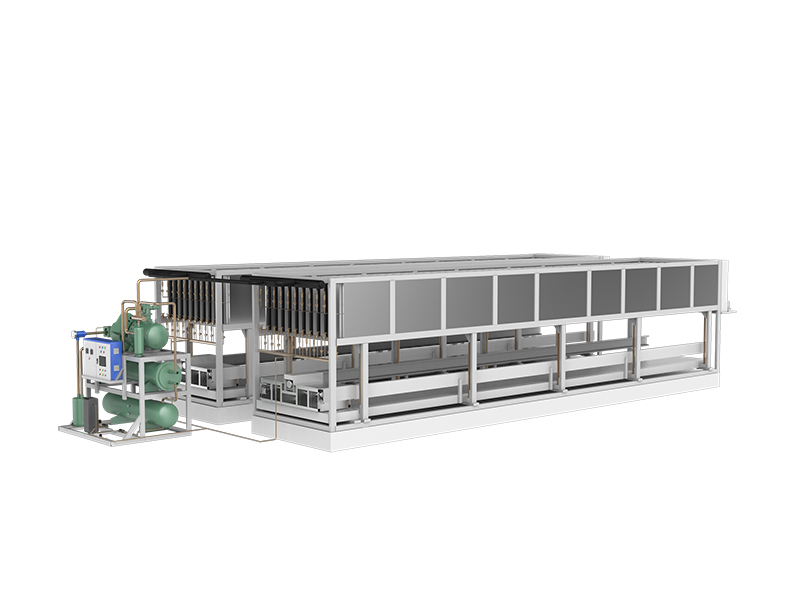

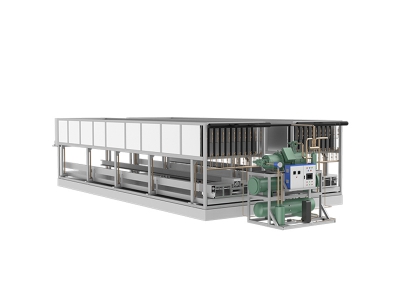

ABI300 Automatic Block Ice Machine, ABI Series

ABI300 Automatic Block Ice Machine, ABI Series
  • Production (T/24h): 30
  • Compressor Power (kW): 39.1
  • Lifting Motor (kW): 5.5*2
  • Ice Weight (KG): 40/ 50
  • Ice Dimension (L*W*H): 435*150*850/ 435*150*850 mm
  • Machine Dimension (L*W*H)
    Compressor Unit: 3200*2000*2500 mm
    Evaporator: 11000*2240*2500*2/ 14000*2900*2650 mm
Inquiry
Direct Cooling Block Ice Machine Parameters
No. Cooling Capacity
(kW) 		Power
(kW) 		Lift Motor
(kW) 		Weight of Ice (kg) Ice Size Machine Size
L*W*H (mm) L*W*H (mm)
ABI 10 12.02 4.22 2.2 5 120*100*500 2600*1100*2000
10 240*100*500 2600*1100*2000
ABI 20 22.9 7.7 3 5 120*100*500 2700*1510*2000
10 240*100*500 2700*1510*2000
ABI 30 30.9 10.33 4 10 240*100*500 3100*1650*2000
15 280*120*500 3400*1725*2000
ABI 50 61.8 20.5 5.5 20 260*120*730 4350*2310*2250
25 320*120*730 4500*2165*2250
No. Cooling Capacity
(kW) 		Power
(kW) 		Lift Motor
(kW) 		Weight of ice (kg) Ice Size Machine Size
L*W*H (mm) Compressor Unit L*W*H (mm) Evaporator L*W*H (mm)
ABI 100 95.8 32.22 7.5 25 320*120*730 6450*2600*2250 (one-piece)
11 30 310*150*730 2400*1700*2000 4900*2110*2250
ABI 150 142.4 47.8 11 30 310*150*730 2950*2000*2250 5550*2460*2250
40 410*150*730 2950*2000*2250 5550*2460*2250
ABI 200 185.4 61.5 15 40 410*150*730 3025*2200*2250 6800*2460*2600
50 350*180*950 3025*2200*2250 3800*2560*2600
ABI 300 249.9 85.5 22.5 40 410*150*730 3325*2200*2500 6800*2460*2250*3
50 350*180*950 3325*2200*2500 6800*2460*2250*3
1. Operation condition: Ambient temperature 32℃, water supply temperature 20℃. The product technology is constantly being updated, and any changes in conditions will be reflected in the quoted price. The conditions listed here are for reference only - the actual situation may vary.
2. This machine does not require a cooling tower, as it is fitted with a water-cooled condenser, allowing for maximum power efficiency. The condenser specifications provide the necessary information to ensure this machine operates to its fullest potential.
3. Operation condition: water temperature 23°C, evaporation temperature -12°C, condensation temperature 40°C, and a reference valve under 50Hz power supply. Please note that variation in water and ambient temperature may affect the actual production of the machine.
Inquiry
