Industrial Tube Ice Machine
Tube Ice Machine

Tube Ice Machine for Industrial ApplicationTube Ice Machine (1T/3T/5T/10T/15T/20T/30T)

Tube Ice Machine
Request a Quote
Size Ice tube:
Tube Ice Machine
  • External diameters: Ø22mm, Ø28mm, Ø35mm
  • Hole diameters: Ø5mm to Ø10mm
  • Length: 30-60mm

Production capacities:
1ton to 30tons

Environmental refrigerant

The tube ice machine is designed to meet the requirements of commercial ice production. It features advanced refrigeration technology combined with an intelligent control system, enabling rapid and efficient production of high-quality edible ice. This ice making machine stands out for its operational simplicity, energy efficiency, and environmental sustainability.

We offer both integrated and modular models to suit various installation needs. Available in standard ice tube diameters of 22mm, 28mm, and 35mm, we also offer customized solutions tailored to specific production requirements.

Samples
  • Tube Ice Machine
  • Tube Ice Machine
  • Tube Ice Machine
  • Tube Ice Machine
  • Model Selection
  • Compare
    1. Features
    2. Tube Ice Machine in Processing
    3. Project Cases
TV10 Tube Ice Machine
TV10 Tube Ice Machine TV10 Tube Ice Machine TV10 Tube Ice Machine

TV10 Tube Ice Machine

  • Daily Output (T/24h): 1
  • Fan Power (kW): 0.18
  • Motor Power (kW): 1.1
  • Weight (kg): 900
Inquiry
TV30 Tube Ice Machine
TV30 Tube Ice Machine TV30 Tube Ice Machine TV30 Tube Ice Machine

TV30 Tube Ice Machine

  • Daily Output (T/24h): 3
  • Fan Power (kW): 1.18
  • Motor Power (kW): 1.4
  • Weight (kg): 1500
Inquiry
TV50 Tube Ice Machine
TV50 Tube Ice Machine TV50 Tube Ice Machine TV50 Tube Ice Machine

TV50 Tube Ice Machine

  • Daily Output (T/24h): 3
  • Fan Power (kW): 1.18
  • Motor Power (kW): 1.4
  • Weight (kg): 1500
Inquiry
TV100 Tube Ice Machine
TV100 Tube Ice Machine TV100 Tube Ice Machine TV100 Tube Ice Machine

TV100 Tube Ice Machine

  • Daily Output (T/24h): 10
  • Fan Power (kW): 1.5
  • Motor Power (kW): 4
  • Weight (kg): 4200
Inquiry
TV150 Tube Ice Machine
TV150 Tube Ice Machine TV150 Tube Ice Machine TV150 Tube Ice Machine

TV150 Tube Ice Machine

  • Daily Output (T/24h): 15
  • Fan Power (kW): 1.5
  • Motor Power (kW): 5.5
  • Weight (kg): 4800
Inquiry
TV200 Tube Ice Machine
TV200 Tube Ice Machine TV200 Tube Ice Machine TV200 Tube Ice Machine

TV200 Tube Ice Machine

  • Daily Output (T/24h): 20
  • Fan Power (kW): 1.5
  • Motor Power (kW): 5.5
  • Weight (kg): 6200
Inquiry
TV300 Tube Ice Machine
TV300 Tube Ice Machine TV300 Tube Ice Machine TV300 Tube Ice Machine

TV300 Tube Ice Machine

  • Daily Output (T/24h): 30
  • Fan Power (kW): 2.2
  • Motor Power (kW): 7.5
  • Weight (kg): 9000
Inquiry
Model Water Cooled Condenser Air-Cooled Condenser Cooling System Motor for Ice Cutter Circulating Water Pump Water-Cooled Chiller Air-Cooled Chiller Machine Weight Shipping Container
Heat Transfer (kW) Heat Transfer (kW) Cooling Tower Fan Power (kW) Cooling Water Pump Motor Power (kW) Power (kW) Power (kW) Compressor Dimension
L*W*H (mm)
Evaporator Dimension
L*W*H (mm)
Dimension L*W*H (mm) kg
TV10 26 24.2 DYT-10 0.18 GD40-15 1.1 0.75 0.37 1330*1050*1698 1350*1180*1950 900 20GP
TV30 53 50 DYT-15 1.18 GD40-15 1.4 0.75 0.75 1500*1350*2077 1600*1450*2240 1500 20GP
TV50 102 100.5 DYT-30 0.55 GD(2)65-19 1.5 1.5 1.5 1700*1500*2160 1850*1700*2540 1800 20GP
TV100 166 165 DYT-50 1.5 GD(2)80-21 4 1.5 1.5 2460*1630*1855 1300*1300*3422 3350*1050*1150 4200 20GP
TV150 260 264 DYT-80 1.5 GD(2)100-19A 5.5 1.5 2.2 2860*2000*2010 1530*1230*4555 3460*1300*1290 4800 20GP
TV200 350 297 DYT-100 1.5 GD(2)100-19A 5.5 1.5 2.2 2960*2200*2093 1500*1250*4840 3760*1380*1290 6200 40HQ
TV300 494 462 DYT-125 2.2 GD(2)100-19 7.5 1.5 4 3260*2200*2630 1800*1550*5556 3400*1300*1380*2 9000 40HQ
Features
    1. Tube Ice Machine

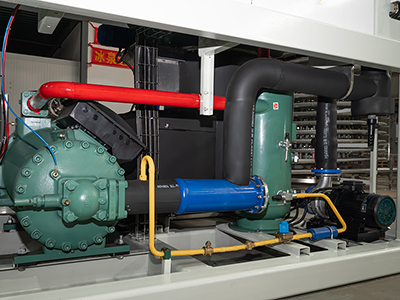

    2. Compressor and Heat Exchanger
      Its high-efficiency compressor and heat exchanger enhance energy utilization efficiency. The tube ice making machine incorporates a refrigeration cycle and advanced cooling technologies, which not only improve its stability and safety but also boost energy savings by over 30%. Additionally, it contributes to reducing greenhouse gas emissions, aligning with environmental sustainability goals.

    1. Tube Ice Machine
    2. Ice Cutter
      The ice cutter is an important component in the ice-making process of the tube ice machine. Its main function is to separate the formed ice tubes from the ice maker once they have reached the desired thickness. This allows for easy handling and storage of the ice tubes, keeping the production flowing smoothly.
      The cutting device, upgraded by CBFI, not only produces ice tubes of uniform quality and size but also boasts an extended lifespan, making it a reliable part of your ice-making production line.

    1. Tube Ice Machine
    2. Safe and Easy to Access during Maintenance
      • The ice tube machine includes a ladder for safe and easy access, making regular inspections and maintenance simple
      • Its carefully arranged wires and pipes with safety features not only ensure operator safety but also contribute to the ice making machine’s eye catching look
    1. Tube Ice Machine
    2. High Quality Tube Ice – Clean, Transparent, and Melt-Resistant
      • Our ice making machine features a semi-flooded evaporator with a special design that fills up nearly completely with liquid refrigerant. This design maximizes the area for heat exchange, ensuring the ice is cooled uniformly and turns out crystal clear.
      • Innovations like the gas-liquid separator and water displacement device ensure that the refrigerant is spread throughout the evaporator evenly. This consistency means every ice cube is the same size and shape, which looks great and helps reduce waste.
      • Uniform ice cubes not only enhance the look of beverages but also melt slower, preserving the drink's integrity longer.
Tube Ice Machine in Processing
Tube Ice Machine
  • Tube Ice Machine
  • Tube Ice Machine
  • Tube Ice Machine
  • Tube Ice Machine
Project Cases
  • 60 tons Tube Ice Machines for South Korea Ice Factory
    60 tons Tube Ice Machines for South Korea Ice Factory
  • CBFI-10 ton Tube Ice plant in Djibouti
    CBFI-10 ton Tube Ice plant in Djibouti
  • CBFI-5 Ton Tube Ice Machine in Saipan, USA
    CBFI-5 Ton Tube Ice Machine in Saipan, USA
  • 120-ton Tube Ice Machine in Ireland
    120-ton Tube Ice Machine in Ireland
