Plate Ice Machine Plate Ice Machine, HYF Series
Plate ice machine is ice plant equipment used for manufacturing irregular solid sheet ice with thickness ranging from 12mm to 20mm, and size range between 30×40mm and 60×100mm. The thickness of plate ice can be adjusted by controlling of freezing time. The produced plate ice is clear, transparent, dry and powderless and not easy to melt, widely used in various fields including fishing industry, pelagic fishery, meat processing, fresh preservation, medical facilities, concrete cooling, mine cooling, environmental engineering, etc.
HYF-10 Plate Ice Machine
- Production (T/24h): 1
- Compressor Power (kW): 3.97
- Circulating Pump Power (kW): 0.37
- Fan Power for Cooling Tower (kW): 0.18
- Cooling Pump Power (kW): 1.1
- Dimension L*W*H (mm): 1900*1370*1660
- Weight (kg): 860
HYF-20 Plate Ice Machine
- Production (T/24h): 2
- Compressor Power (kW): 7.19
- Circulating Pump Power (kW): 0.55
- Fan Power for Cooling Tower (kW): 0.37
- Cooling Pump Power (kW): 1.5
- Dimension L*W*H (mm): 2400*1600*1700
- Weight (kg): 1200
HYF-30 Plate Ice Machine
- Production (T/24h): 3
- Compressor Power (kW): 9.62
- Circulating Pump Power (kW): 0.75
- Fan Power for Cooling Tower (kW): 0.56
- Cooling Pump Power (kW): 1.5
- Dimension L*W*H (mm): 2400*1600*1700
- Weight (kg): 1350
HYF-50 Plate Ice Machine
- Production (T/24h): 5
- Compressor Power (kW): 15.18
- Circulating Pump Power (kW): 1.1
- Fan Power for Cooling Tower (kW): 0.75
- Cooling Pump Power (kW): 2.2
- Dimension L*W*H (mm): 2500*1860*1950
- Weight (kg): 1500
HYF-100 Plate Ice Machine
- Production (T/24h): 10
- Compressor Power (kW): 26.9
- Circulating Pump Power (kW): 1.5
- Fan Power for Cooling Tower (kW): 1.5
- Cooling Pump Power (kW): 4
- Dimension L*W*H (mm): 2500*2200*2150
- Weight (kg): 2500
HYF-150 Plate Ice Machine
- Production (T/24h): 15
- Compressor Power (kW): 45
- Circulating Pump Power (kW): 2.2
- Fan Power for Cooling Tower (kW): 1.5
- Cooling Pump Power (kW): 5.5
- Dimension L*W*H (mm): 4000*1800*2200
- Weight (kg): 3800
HYF-200 Plate Ice Machine
- Production (T/24h): 20
- Compressor Power (kW): 53.8
- Circulating Pump Power (kW): 2.2
- Fan Power for Cooling Tower (kW): 2.2
- Cooling Pump Power (kW): 5.5
- Dimension L*W*H: 4000*2040*2200 (mm)
- Weight (kg): 4650
| Model | Production (ton/24h) | Compressor Power(kW) | Circulating Pump Power(kW) | Fan Power for Cooling Tower(kW) | Cooling Pump Power(kW) | Dimension L * W * H(mm) | Weight(kg) |
| HYF-10 | 1 | 3.97 | 0.37 | 0.18 | 1.1 | 1900*1370*1660 | 860 |
| HYF-20 | 2 | 7.19 | 0.55 | 0.37 | 1.5 | 2400*1600*1700 | 1200 |
| HYF-30 | 3 | 9.62 | 0.75 | 0.56 | 1.5 | 2400*1600*1700 | 1350 |
| HYF-50 | 5 | 15.18 | 1.1 | 0.75 | 2.2 | 2500*1860*1950 | 1500 |
| HYF-100 | 10 | 26.9 | 1.5 | 1.5 | 4 | 2500*2200*2150 | 2500 |
| HYF-150 | 15 | 45 | 2.2 | 1.5 | 5.5 | 4000*1800*22000 | 3800 |
| HYF-200 | 20 | 53.8 | 2.2 | 2.2 | 5.5 | 4000*20400*2200 | 4650 |
| ♦Compressor Brand: Bitzer / Frascold; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling; ♦ Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately). ♦ Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensation) : 40 ° C,T(evaporation)：-10℃. (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature. The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there is any technical change.) | |||||||
- Compressor Brand: Bitzer / Frascold; Refrigerant: R22/R404A; Cooling Method: Water Cooling / Air Cooling;
- Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
- Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 40 ° C,T(evaporating)：-10℃.
- (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
- (The final interpretation of the above metioned parameters is in Icesource, there will be no further notice, if there is any technical change.)
This plate ice machine adopts microcomputer for centralized control and easy operation, capable of realizing independent ice making and ice harvesting, greatly shortening the ice making time. The structure of the ice machine is highly resistant to corrosion, shock and compression.

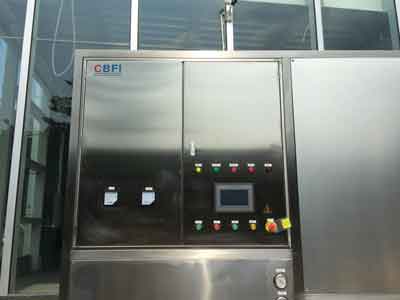

Electricity box
Display screen
Pressure controller
