Cube Ice Machines
Cube Ice Machines

Cube Ice Machines (CV1000 / CV2000 / CV3000 / CV5000 / CV10000 / CV20000 )

Large-scale edible cube ice machine is a large-scale production equipment for edible cube ice making. The produced cube ice is clean, hygienic and crystal clear. It is widely used in hotels, bars, restaurants, convenience stores, cold drinks shops, etc. place.

Guangzhou Icesource Refrigeration (CBFI) is a leading manufacturer of large-scale edible ice cube machines. It has a core invention patent (patent number: 200710030591.7). The company uses self-developed flat-wall fluid film heat transfer and circulating hot air ice extraction technologies to solve the defects that may occur in small ice cube machines, such as low production capacity, high power consumption, uneven ice thickness, and unstable ice harvest. At the same time, we provide a one-stop solution for a fully automated large-scale edible cube ice production line to reduce labor costs and improve production efficiency. The system ensures the safety and sanitation of edible ice in all aspects. Icesource refrigeration large-scale edible cube ice machine is the first choice for your edible ice factory.

TV10 Tube Ice Machine
Request a Quote
  • Daily Output (T/24h): 1-20T
  • Size of Cube Ice: 22*22*22mm / 29*29*22mm / 38*38*22mm
  • Environmental refrigerant
  • Cooling Method: Water Cooling / Air Cooling
  • Model Selection
  • Compare
    1. Features
    2. Project Cases
CV1000 Cube Ice Machines
CV1000 Cube Ice Machines CV1000 Cube Ice Machines CV1000 Cube Ice Machines CV1000 Cube Ice Machines

CV1000 Cube Ice Machines

  • Daily output (T/24h): 1
  • Compressor power: 4.34kw
  • Fan power for cooling tower: 0.18kw
  • Cooling pump power: 1.1kw
  • Unit size (mm): L1800*W1000*H1700
  • Unit N.W.(kg): 800
Inquiry
CV2000 Cube Ice Machines
CV2000 Cube Ice Machines CV2000 Cube Ice Machines CV2000 Cube Ice Machines CV2000 Cube Ice Machines

CV2000 Cube Ice Machines

  • Daily output (T/24h): 2
  • Compressor power: 7.88kw
  • Fan power for cooling tower: 0.37kw
  • Cooling pump power: 1.5kw
  • Unit size (mm): L1630*W1600*H1706
  • Unit N.W.(kg): 1000
Inquiry
CV3000 Cube Ice Machines
CV3000 Cube Ice Machines CV3000 Cube Ice Machines CV3000 Cube Ice Machines CV3000 Cube Ice Machines

CV3000 Cube Ice Machines

  • Daily output (T/24h): 3
  • Compressor power: 10.58kw
  • Fan power for cooling tower: 0.56kw
  • Cooling pump power: 1.5kw
  • Unit size (mm): L1980*W1630*H1860
  • Unit N.W.(kg): 1200
Inquiry
CV5000 Cube Ice Machines
CV5000 Cube Ice Machines CV5000 Cube Ice Machines CV5000 Cube Ice Machines CV5000 Cube Ice Machines

CV5000 Cube Ice Machines

  • Daily output (T/24h): 5
  • Compressor power: 21kw
  • Fan power for cooling tower: 0.75kw
  • Cooling pump power: 2.2kw
  • Unit size (mm): L2890*W1780*H1860
  • Unit N.W.(kg): 1600
Inquiry

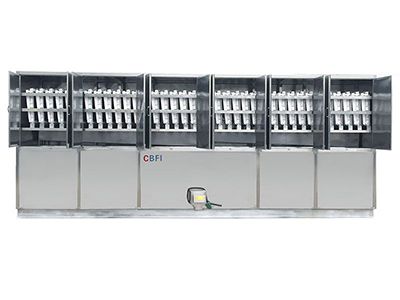

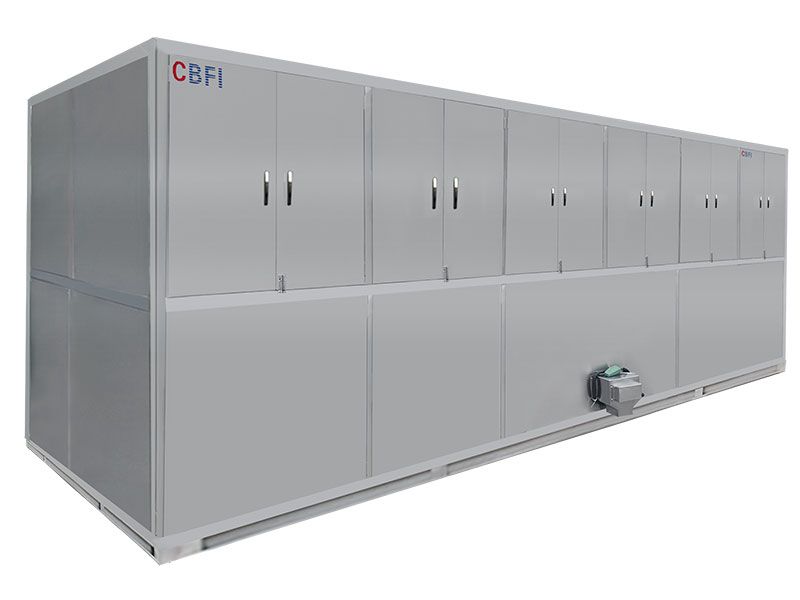

CV10000 Cube Ice Machines
CV10000 Cube Ice Machines CV10000 Cube Ice Machines CV10000 Cube Ice Machines CV10000 Cube Ice Machines

CV10000 Cube Ice Machines

  • Daily output (T/24h): 10
  • Compressor power: 42kw
  • Fan power for cooling tower: 1.5kw
  • Cooling pump power: 4kw
  • Unit size (mm): L5730*W1780*H2130
  • Unit N.W.(kg): 3000
Inquiry
CV20000 Cube Ice Machines
CV20000 Cube Ice Machines CV20000 Cube Ice Machines CV20000 Cube Ice Machines CV20000 Cube Ice Machines

CV20000 Cube Ice Machines

  • Daily output (T/24h): 20
  • Compressor power: 73.5kw
  • Fan power for cooling tower: 2.2kw
  • Cooling pump power: 5.5kw
  • Unit size (mm): L7100*W2250*H2300
  • Unit N.W.(kg): 5000
Inquiry
Model CV1000 CV2000 CV3000 CV5000 CV10000 CV20000
Daily output
(Ton/24h)
1 2 3 5 10 20
Compressor Power 4.34kw 7.88kw 10.58kw 21kw 42kw 73.5kw
Fan Power for Cooling Tower 0.18kw 0.37kw 0.56kw 0.75kw 1.5kw 2.2kw
Cooling Pump Power 1.1kw 1.5kw 1.5kw 2.2kw 4kw 5.5kw
Unit size L (mm) 1800 1630 1980 2890 5730 7100
W (mm) 1000 1600 1630 1780 1780 2250
H (mm) 1700 1706 1860 1860 2130 2300
Unit N.W.(kg) 800 1000 1200 1600 3000 5000
  • Compressor brand: Bitzer / Frascold
  • Power supply: voltage 380V/3P/50Hz
  • Operating conditions: water supply temperature: 20°C, ambient temperature: 32°C, condensing temperature: 40°C, evaporating temperature: -10℃.
Features of Cube Ice Machine
    1. Tube Ice Machine
    2. Safe and sanitary
      The machine is made of 304 stainless steel. The water sink is specially designed to avoid incrustation. The machine also has an automatic cleaning function, to make sure the cube ice is sanitary, safe, and in compliance with the international standards.

    1. Tube Ice Machine
    2. Low power consumption
      Power consumption is 85-90 degrees/ton in summer, when the ambient temperature is below 23 degrees, the power consumption will be 70-85 degrees/ton.

    1. Tube Ice Machine
    2. Automatic operation
      Cube ice machine adopts PLC centralized control, so the machine has the following automatic functions, automatic adjustment of ice thickness, automatic ice formation, automatic ice harvest, and automatic water replenishment.

    1. Tube Ice Machine
    2. Three Types of Ice Molds
      Our ice blocks are customizable to meet specific needs. The nickel-plated ice molds are designed to resist corrosion and maintain hygiene, ensuring that the ice produced is safe and edible. This attention to detail guarantees quality in every ice cube.

    1. Tube Ice Machine
    2. Stable performance
      Ice cubes are crystal clear, have high hardness, uniform rules, beautiful appearance, long storage time, clean and hygienic, and fully meet the national hygienic requirements for edible ice.

    1. Tube Ice Machine
    2. Reliable brand accessories
      The compressor adopts German Bitzer or Italy Frascold, and the electrical accessories adopt Siemens, LG brand, etc.;

    1. Tube Ice Machine
    2. Control System with Touchscreen
      The entire system is managed through a touchscreen control panel that simplifies operations. Its user-friendly display allows for easy monitoring of operations, enhancing control and efficiency. This intuitive interface makes it easy for anyone to operate the ice slicer, improving overall user experience.

Project Cases
  • 20-tons Square Ice Semi-automatic Edible Ice Production Line for Zhengzhou Client

    20-tons Square Ice Semi-automatic Edible Ice Production Line for Zhengzhou Client

    This project is the first large-scale edible ice and ice factory built in strict accordance with SC standards in Zhengzhou. The special feature of the project is that the ice factory is located inside a building with a small single-storey area.
