Block Ice Maker
Block Ice Maker
Block Ice Maker
Block Ice Maker Block Ice Maker Block Ice Maker
Request a Quote

Block Ice Maker
(Clear Ice)

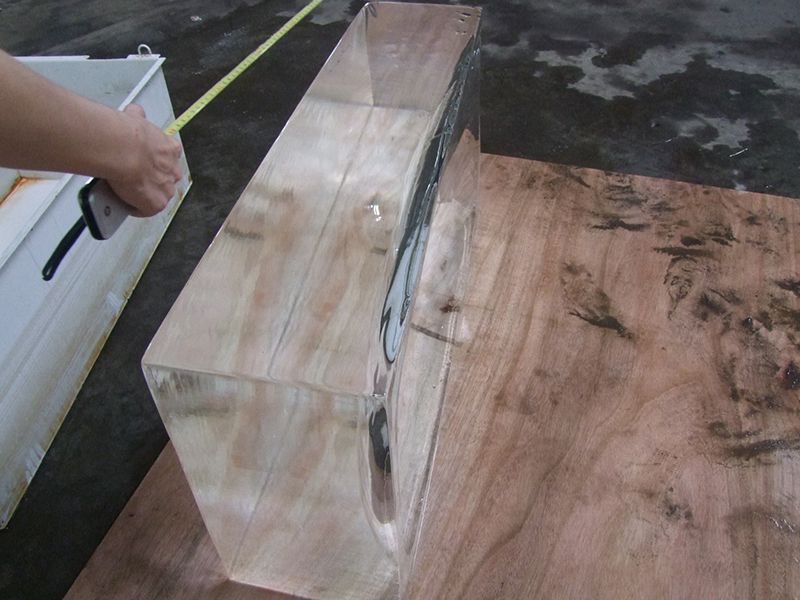

Block ice maker is a high grade clear blocked ice production machine. By utilizing pure water, the produced ice is crystal-clear, slow melting, powderless and sanitary. Coupled with Icesource’ ice processing equipment such as ball ice shaping machine and ice cutting machine, it is possible to produce ice into various shapes, including cube ice, ball ice, etc., which are widely used to chill wines and beverages, as well as suitable for ice sculptures and carvings.

  • Ice Output per Time: 2pcs
  • Ice Thickness: 250 mm
  • Environment-friendly Refrigerant
  • Cooling Method: Air Cooling

  • Block Ice Maker
  • Block Ice Maker
  • Block Ice Maker
Features
  • Made using stainless steel, the block ice maker is durable and easy to clean.
  • With leading clear ice forming technology, the ice machine is used for making clear ice.
  • Due to hygienic production and pure water supply, food grade clear ice can be made.
  • The compact ice making equipment is easy to transport, move, and install on site.
  • PLC control system ensures fully automatic production and easy operation.
  • The size and weight of the ice cube can be set, clean and clear without bubbles, and the ice cube can be eaten directly.
Specifications
Power Supply 220V/50HZ/1P
Evaporation Temperature 23℃
Condensation Temperature 40℃
Ambient Temperature 32℃
Water Supply Temperature 20℃
Ice Thickness 250 mm
Ice Size 1000*500*250 mm
Single Ice Block Weight 112.5 kg
Capacity per time 225 kg
Quantity of ice per time 2 piece
Ice Making Time 70 h
Equipment Size (L*W*H) 1300*1225*973 mm
Power 0.66 kW

♦ Compressor Brand: Copeland; Environment-friendly Refrigerant; Cooling Method: Air cooling;
♦ Power Supply: 220V/1P/50Hz; (For non-standard voltage, unit configuration needs to be calculated separately).
♦ Remark: The actual ice production varies due to the influence of water supply temperature and ambient temperature.

Models Selection
Conventional Parameters Ice Thickness 60 mm 90 mm
Model PIM Ice Weight 6.7 kg 9.7 kg
Power Supply 220v/50Hz/1P Capacity 26.8kg/time 38.8kg/time
Equipment Size 1920*960*1750 mm Daily Capacity 80.4 kg/day 77.6 kg/day
Power 2.1kW three times two times
The Quantity 4 Piece Time of Ice-making 7h 11h
of Ice (per time)
Ice Size mm 480*270*60 480*270*90 Associated Equipment Ball ice forming machine,
Cutting machine, etc.
