Tube Ice Machine (Solid Tube Ice with Flat Cut Ends)
Ice Making Machine
Tube Ice Machine (Solid Tube Ice with Flat Cut Ends)
Tube Ice Machine (Solid Tube Ice with Flat Cut Ends) Tube Ice Machine (Solid Tube Ice with Flat Cut Ends)
Request a Quote

Tube Ice Machine (Solid Tube Ice with Flat Cut Ends)

Features
  • Patented cutting technology ensures smooth cutting, saw cutting rate of more than 92.5%.
  • The cutting blade is made using SUS440C (scalpel grade material), making it anti-rust, corrosion-resistant, and durable.
  • Patented refrigeration technology eliminates all problems caused by load changes, ensuring stable operation of the entire refrigeration system.
  • Exclusive ice-making water control system ensures that the solid rate is above 87.5%.

Tube Ice Machine (Solid Tube Ice with Flat Cut Ends)
  • Daily Output: 10T, 20T, 30T
  • Environment-friendly Refrigerant
  • Cooling Method: Water Cooling / Air Cooling
Specifications
Model Refrigerant Charge
(kg)
Bitzer Compressor Evaporator Condensing System Equipment Size Equipment
Weight (kg)
Model Cooling Capacity (kg) Power (kW) Ice Cutting Motor(kW) Chilled Water Pumps(kW) Cooling Power Power (kW) Chilled Water Pumps Power (kW) Refrigeration System
L*W*H(mm)
Evaporator L*W*H(mm)
T10 500 CSH7573-90 143.4 59.9 1.5 2.2 DYT-60 1.5 GD80-21 4 2940*2000°2060 2000*1600*5108 3900
T10 500 CSH7573-90 143.4 59.9 1.5 2.2 DYT-60 1.5 GD80-21 4 2940*2000°2060 2000*1600*5508 3900
T10 500 CSH7573-90 143.4 59.9 1.5 2.2 DYT-60 1.5 GD80-21 4 2940*2000*2060 2000*1600°5408 3900
T20 1000 CSH9553-180 302 122.2 1.5 4 DYT-125 2.2 GD100-19A 5.5 3863*2200*2500 253*1950*6645 6900
T30 1500 CSH9573-240 415 160.7 1.5 4 DYT-200 4 GD125-20 15 3863*2200*2500 2350*1950*6650 7800
T30 1500 CSH9573-240 415 160.7 1.5 4 DYT-200 4 GD125-20 15 3863*2200*2500 2350*1950*6850 7800
T30 1500 CSH9573-240 415 160.7 1.5 4 DYT-200 4 GD125-20 15 3863*2200*2500 2350*1950*6945 7800
T30 1500 CSH9573-240 415 160.7 1.5 4 DYT-200 4 GD125-20 15 3863*2200*2500 2350*1950*7645 7800
Comparison between Flat Cut Ends and Traditionally Cut Ends Specifications

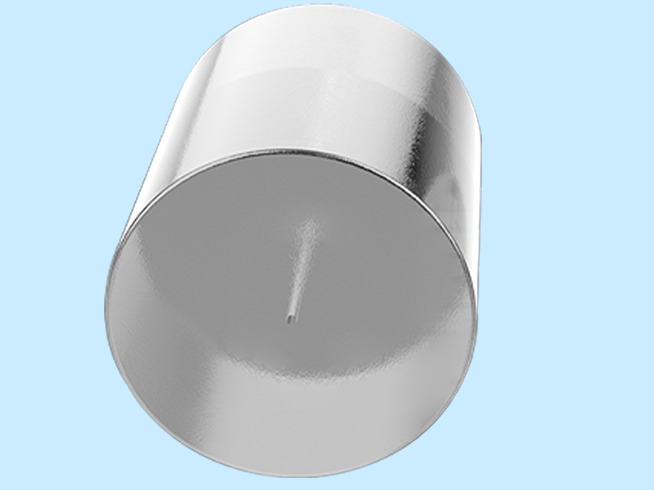

  • Tube Ice Machine (Solid Tube Ice with Flat Cut Ends)Solid Tube Ice with Flat Cut Ends
  • Tube Ice Machine (Solid Tube Ice with Flat Cut Ends)Hollow Tube Ice with Traditionally Cut Ends
Project Cases
  • Fully automated ice factory--30Tons solid-cut flat tube ice machine in Europe

    Fully automated ice factory--30Tons solid-cut flat tube ice machine in Europe

    Project Mainly Involve Products
    30tons ammonia system solid-cut flat tube ice machine
    Country: in Europe

  • 40-ton Solid Tube Ice Machine in Spain

    40-ton Solid Tube Ice Machine in Spain

    Type: Tube Ice Machine
    Compressor: Bitzer compressor
    Material: SUS304 stainless steel
