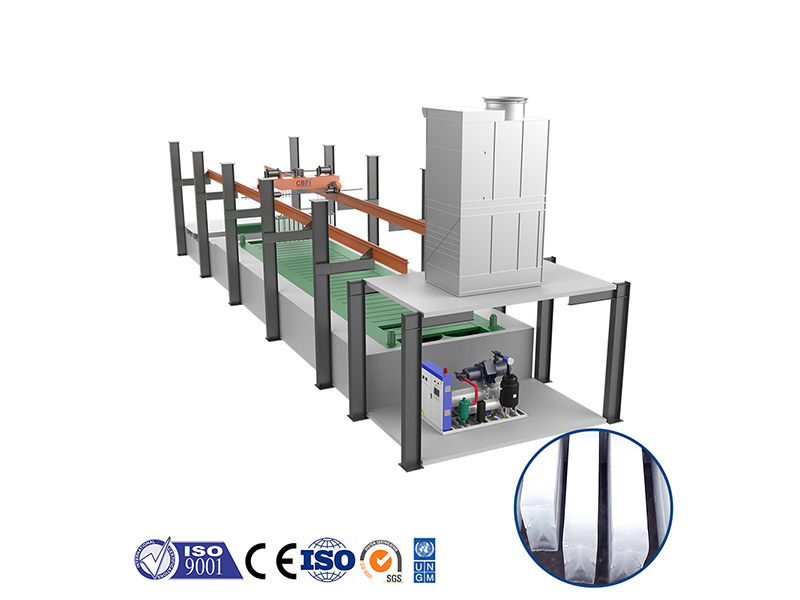

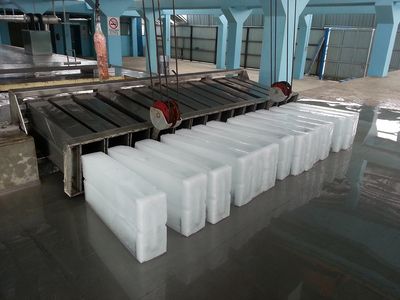

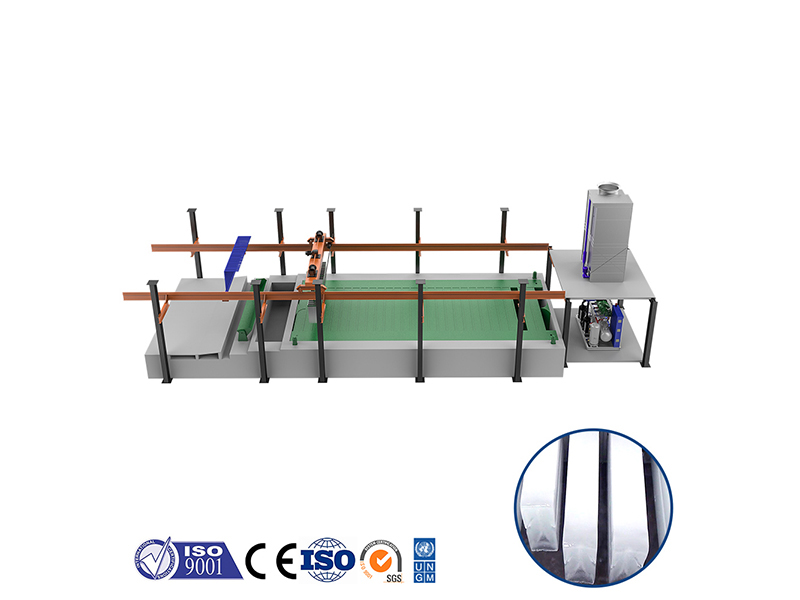

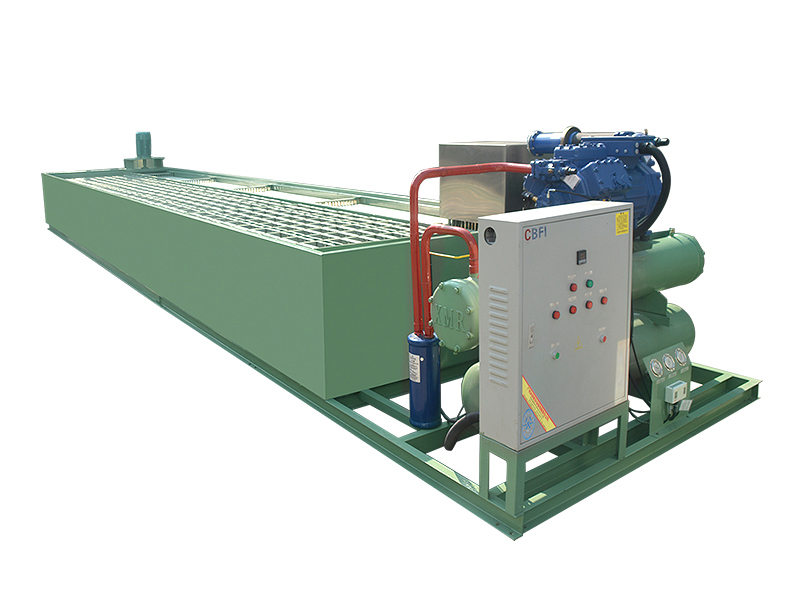

As one of the ice manufacturing equipment, block ice machine is commonly used to produce rectangular solid block ice that has larger size in comparison with other ice products, and a slow melt rate.
Icesource has been pioneering in the field of large block ice machines, the daily production capacity is ≥ 3T to meet customer’s individual production demands. Icesource has successfully developed world’s first large fluorine refrigeration block ice machine with a daily capacity of 100ton, and it was put into operation in Malaysia in 2010.
Our block ice machine can be custom manufactured to meet your specific needs, and the ice blocks can be cracked into a variety of required shapes.
Ice plants, food processing, fresh preservation and cooling of aquatic products, ice sculpture, daily ice consumption, etc.

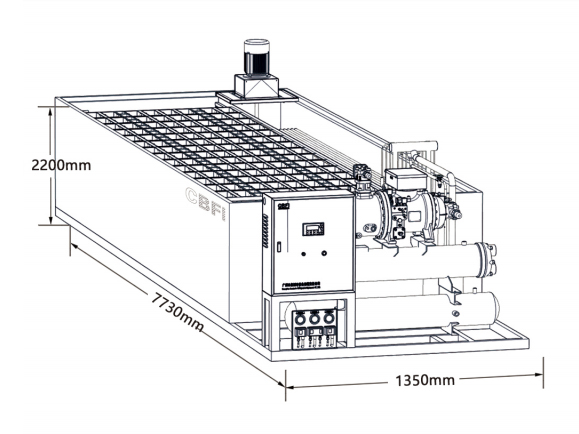

| Model | Daily Output (Ton/24h) | Compressor Power | Fan Power for Cooling Tower | Cooling Pump Power | Block Ice Weight(kg) | Unit Size (L*W*H mm) (Integrated Type) | Unit N.W.(kg) |
| | 10 | 34.2kw | 1.5kw | 4kw | 25 | 8660*2200*1700 | 2700 |
| | 20 | 68.6kw | 2.2kw | 5.5kw | 25 | 3500*1500*2200(Main Host) 11560*4200*1565(Brine Tank) | 5500 |
| | 30 | 104.3kw | 8kw | 3kw | 50 | 3000*1500*2000(Main Host) | Consulting manufacturer |
| | 50 | 181.2kw | 12kw | 4kw | 50 | 3950*1750*2310(Main Host) | |
| | 100 | 362.4kw | 24kw | 8kw | 100 | 3950*1750*2310*2(Main Host) |

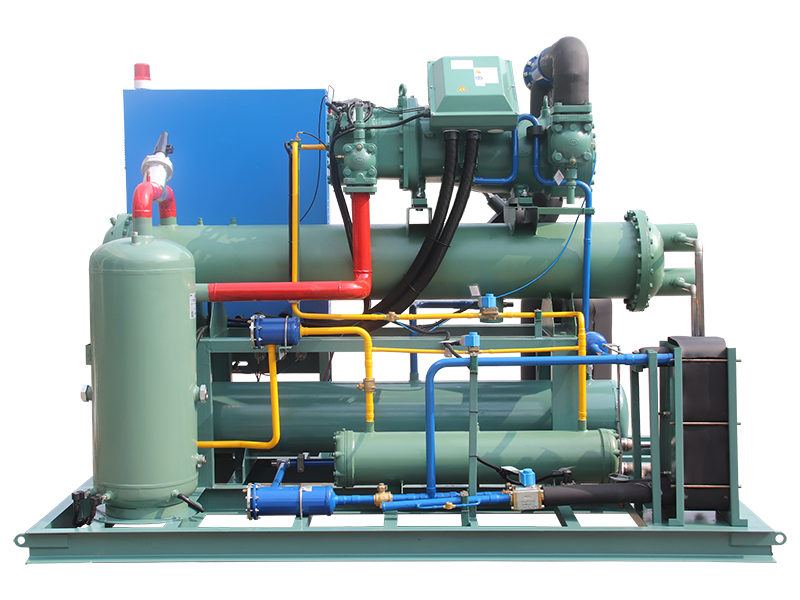

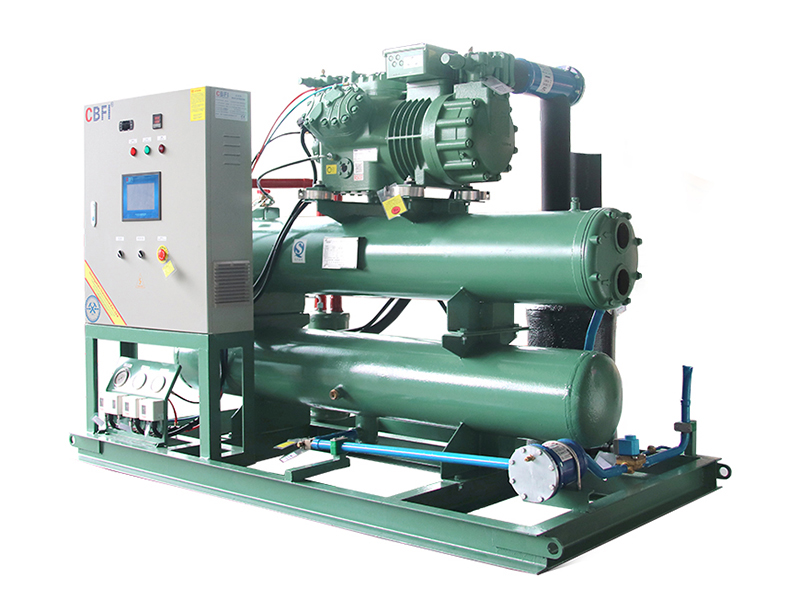

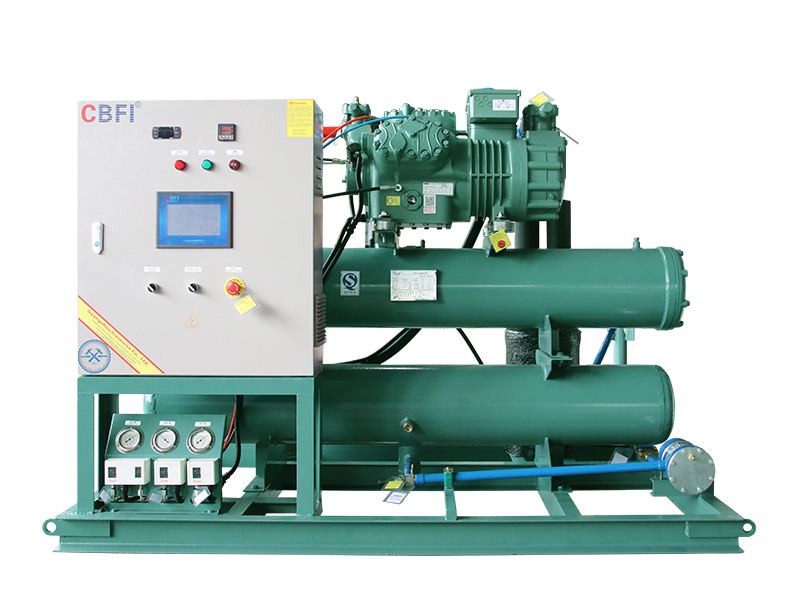

Bitzer Compressor
Our ice making machines include a Bitzer compressor from Germany, known for its reliability. Wherever you are located, you’ll have easy access to spare parts and expert service, keeping your systems operational with minimal interruptions.

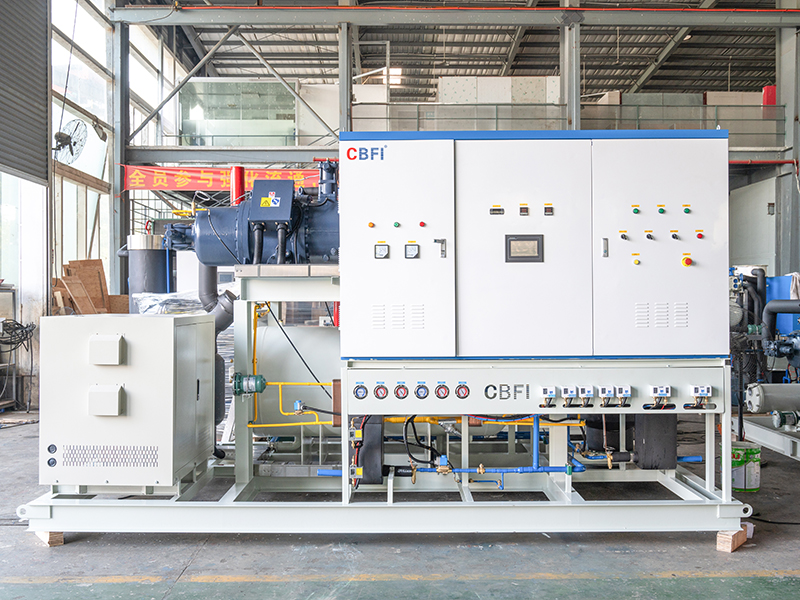

Control System
Our ice making machinery is equipped with a PLC and a touchscreen controller for simplified operations. Operators can quickly learn to control the entire machine, making it easier to manage and operate efficiently.

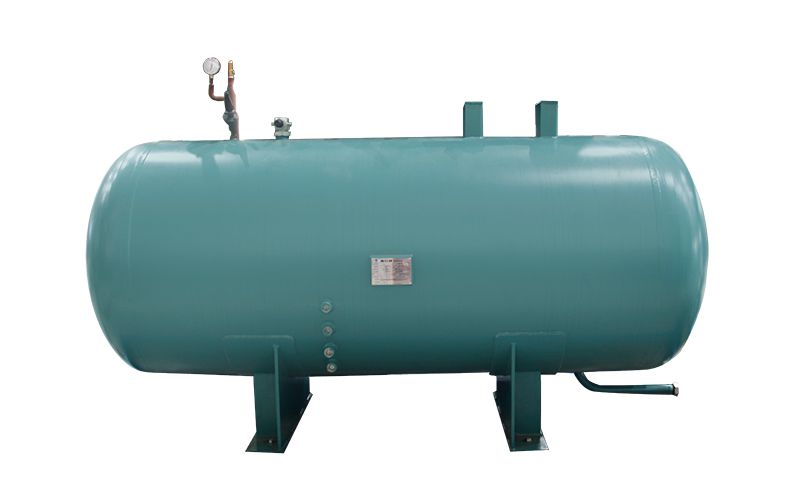

Large capacity water reservoir, allowing compressor to run smoothly without water hitting, efficiently protecting the compressor from being damaged;
Ice molds (ice cans) is customizable according to your acute market needs;

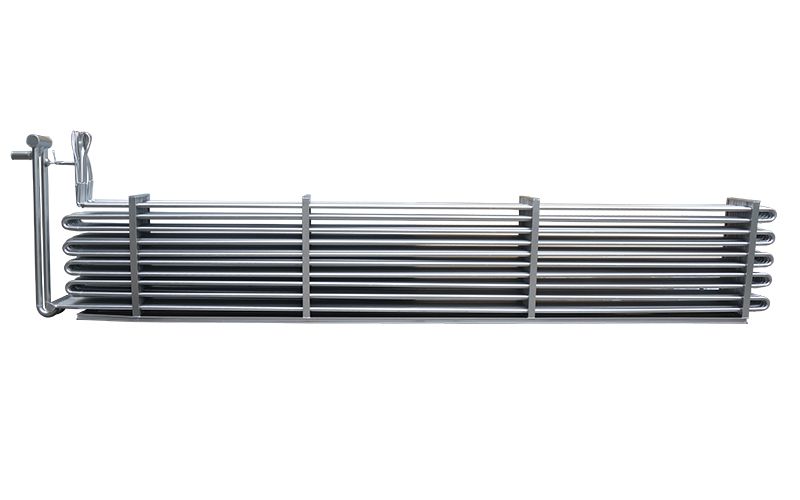

Evaporator tube wall thickness is up to 3mm, reliable and long lifespan of 20 years;
Patented design of evaporator, improved ice making efficiency and reduced energy consumption;
Brine tank features a corrosion resistant surface, which is specially treated by coating with two layers of primer coatings and one layer of top coatings. The coating layer is resistant to low temperature and can be immersed in brine water for a long time without falling off. Service life of brine tank is 35% higher than that of other similar tanks;
