Flake Ice Machine
Ice Making Machine
BF500 Flake Ice Machine
Request a Quote

Industrial Flake Ice Machine Flake Ice Machine, BF Series

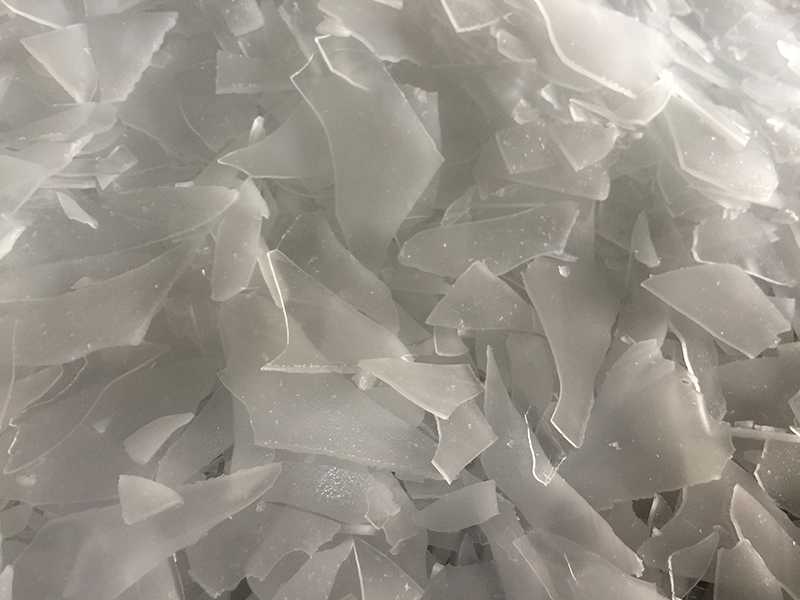

Flake ice machine is a kind of ice production machines used to produce dry, flat and thin pieces of ice with thickness range of 1.5-2.2mm and diameter range of 12-45mm. Ice flakes have a relatively large surface contact area, providing faster and better cooling effect than other types of ice, and the flat shape of ice will not damage the delicate or fragile products. Flake ice machine is widely found in applications of seafood processing, fish farming, concrete cooling, etc.

  • Model Selection
  • Compare
    1. Features
    2. Project Cases

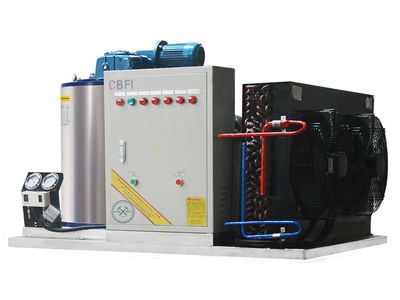

BF1000 Flake Ice Machine
BF1000 Flake Ice Machine BF1000 Flake Ice Machine BF1000 Flake Ice Machine BF1000 Flake Ice Machine

BF1000 Flake Ice Machine

  • Daily output (T/24h): 1
  • Cooling Method: Air
  • Compressor Power: 7.44kw
  • Unit size (L*W*H): 1320*900*900 mm
  • Unit N.W. (kg): 210
Inquiry
BF2000 Flake Ice Machine
BF2000 Flake Ice Machine BF2000 Flake Ice Machine BF2000 Flake Ice Machine

BF2000 Flake Ice Machine

  • Daily output (T/24h): 2
  • Cooling Method: Air
  • Compressor Power: 10kw
  • Unit size (L*W*H): 1750*1100*1050 mm
  • Unit N.W. (kg): 360
Inquiry
BF3000 Flake Ice Machine
BF3000 Flake Ice Machine BF3000 Flake Ice Machine BF3000 Flake Ice Machine

BF3000 Flake Ice Machine

  • Daily output (T/24h): 3
  • Cooling Method: Water
  • Compressor Power: 8.45kw
  • Fan Power for Cooling Tower: 0.37kw
  • Cooling Pump Power: 1.5kw
  • Unit size (L*W*H): 1500*1250*1260 mm
  • Unit N.W. (kg): 1000
Inquiry
BF5000 Flake Ice Machine
BF5000 Flake Ice Machine BF5000 Flake Ice Machine BF5000 Flake Ice Machine BF5000 Flake Ice Machine

BF5000 Flake Ice Machine

  • Daily output (T/24h): 5
  • Cooling Method: Water
  • Compressor Power: 13.49kw
  • Fan Power for Cooling Tower: 0.75kw
  • Cooling Pump Power: 2.2kw
  • Unit size (L*W*H): 1900*1500*1470 mm
  • Unit N.W. (kg): 1100
Inquiry
BF10000 Flake Ice Machine
BF10000 Flake Ice Machine BF10000 Flake Ice Machine BF10000 Flake Ice Machine BF10000 Flake Ice Machine

BF10000 Flake Ice Machine

  • Daily output (T/24h): 10
  • Cooling Method: Water
  • Compressor Power: 33.8kw
  • Fan Power for Cooling Tower: 1.5kw
  • Cooling Pump Power: 4kw
  • Unit size (L*W*H): 2500*2000*1860 mm
  • Unit N.W. (kg): 1500
Inquiry
BF15000 Flake Ice Machine
BF15000 Flake Ice Machine BF15000 Flake Ice Machine BF15000 Flake Ice Machine

BF15000 Flake Ice Machine

  • Daily output (T/24h): 15
  • Cooling Method: Water
  • Compressor Power: 44.5kw
  • Fan Power for Cooling Tower: 1.5kw
  • Cooling Pump Power: 4kw
  • Unit size (L*W*H): 3350*2150*1960 mm
  • Unit N.W. (kg): 3200
Inquiry
BF20000 Flake Ice Machine
BF20000 Flake Ice Machine BF20000 Flake Ice Machine BF20000 Flake Ice Machine

BF20000 Flake Ice Machine

  • Daily output (T/24h): 20
  • Cooling Method: Water
  • Compressor Power: 64kw
  • Fan Power for Cooling Tower: 1.5kw
  • Cooling Pump Power: 5.5kw
  • Unit size (L*W*H): 3400*2220*2230 mm
  • Unit N.W. (kg): 4200
Inquiry
BF30000 Flake Ice Machine
BF30000 Flake Ice Machine BF30000 Flake Ice Machine BF30000 Flake Ice Machine

BF30000 Flake Ice Machine

  • Daily output (T/24h): 30
  • Cooling Method: Water
  • Compressor Power: 93.7kw
  • Fan Power for Cooling Tower: 2.2kw
  • Cooling Pump Power: 7.5kw
  • Unit size (L*W*H): 4700*2250*2520
  • Unit N.W. (kg): 5000
Inquiry
Model Daily Output (T/24h) Cooling Method Compressor Power Fan Power for Cooling Tower Cooling Pump Power Unit Size Unit N.W. (kg)
(L*W*H mm)
BF 1000 1 Air 7.44 kW -- -- 1320*900*900 210
BF 2000 2 Air 10 kW -- -- 1750*1100*1050 360
BF 3000 3 Water 8.45 kW 0.37 kw 1.5 kW 1500**1250*1260 1000
BF 5000 5 Water 13.49 kW 0.75 kw 2.2 kW 1900*1500*1470 1100
BF 10000 10 Water 33.8 kW 1.5 kw 4 kW 2500*2000*1860 1500
BF 15000 15 Water 44.5 kw 1.5 kw 4 kw 3350*2150*1960 3200
BF 20000 20 Water 64 kw 1.5 kw 5.5 kw 3400*2220*2230 4200
BF 30000 30 Water 93.7 kw 2.2 kw 7.5 kw 4700*2250*2520 5000
Features

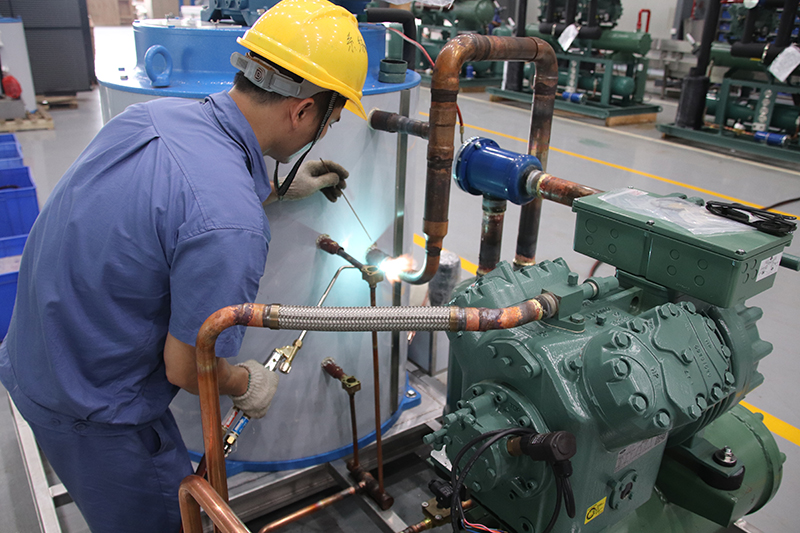

    1. Bitzer Compressor
    2. Bitzer Compressor
      We use the German Bitzer compressor, known for its reliability and widespread support network. No matter where you are, accessing spare parts and service is straightforward, ensuring continuous operation without significant downtime.

    1.  Stainless Steel Evaporator
    2. Stainless Steel Evaporator
      The stainless steel evaporators ensure that the ice produced is not only clean and healthy but also durable. The stainless steel surface guarantees a long service life while providing consistently high-quality ice.

    1. Adjustable Water Spray System
    2. Adjustable Water Spray System
      The adjustable water spray system is designed to control the thickness of the ice. Simply adjust the valves to vary the water flow. Open more valves for thicker ice, giving you flexibility in ice production according to your needs.

    1. Flake Ice Scraper
    2. Flake Ice Scraper
      The flake ice scrapers are made from high-density materials from the USA, designed for a long service life. These scrapers deliver consistent performance, ensuring smooth operation throughout their service life.

    1. Ice Rake System
    2. Ice Rake System
      The ice rake system is used together with ice making equipment, and is normally installed in the cold storage for ice, which makes it possible to serve the urgent demand of large quantity of ice when needed. There are several ice rake systems as below:

      • Ice Rake SystemIce rake system for chemical manufacturing
      • Ice Rake SystemIce rake system for cooling concrete
      • Ice Rake SystemStructural steel ice rake system
      • Ice Rake SystemContainerized ice rake system
  • Compressor Brand: Bitzer / Hanbell; Environmental refrigerant; Cooling Method: Water Cooling / Air Cooling;
  • Power Supply: Voltage 380V/3P/50Hz (For non-standard voltage, unit configuration needs to be calculated separately).
  • Operating Conditions: T(water supply) : 20 ° C, T(ambient) : 32 ° C, T(condensing) : 38 ° C,T(evaporating):-18℃.
  • (Note: The actual ice production varies due to the influence of water supply temperature and ambient temperature.)
  • (The final interpretation of the above mentioned parameters is in Icesource, there will be no further notice, if there is any technical change.)
Project Cases
  • 120T Flake Ice Machine Operated in Shandong
    120T Flake Ice Machine Operated in Shandong
  • Morocco--50T Flake Ice Rake Automatic System
    Morocco--50T Flake Ice Rake Automatic System
  • Qatar--Concrete Cooling 30 Tons Flake Ice System
    Qatar--Concrete Cooling 30 Tons Flake Ice System
  • Mozambique--40T Flake Ice Rake Automatic Ice Storage System
    Mozambique--40T Flake Ice Rake Automatic Ice Storage System
