Double Spiral Quick Freezer

Double Spiral Quick Freezer
Double Spiral Quick Freezer Double Spiral Quick Freezer Double Spiral Quick Freezer
Request a Quote

Double Spiral Quick Freezer

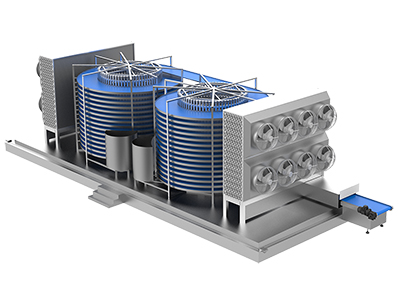

The double spiral quick freezer is a highly efficient and area-saving piece of equipment specifically designed for quick-freezing. Its two spiral design helps products, such as bread, cakes, meat, poultry, fish, ice cream, and dairy products, move on a mesh belt spirally, freezing them quickly and efficiently. This freezer is also useful in cooling and bread fermentation applications.

Design philosophy of cost-effectiveness and usability
This quick freezer has been designed using the latest European technology, combining mechanical and electronic protection to ensure safe and trouble-free operation. The process is user friendly and allows for flexibility when it comes to feed direction and integration of other machinery into a production line. This enables a seamless and efficient production cycle.

Features
  • Equipped with a double drum structure that maximizes the characteristics of the spiral quick freezer, significantly improving freezing efficiency
  • The drums and conveyor belt are supported by UHMW polyethylene protective strips, which are both wear-resistant and durable, extending the lifespan of the stainless steel mesh belt. Its optimized airflow design ensures thermal insulation and prevents frosting on the evaporator, extending the defrosting intervals
  • Features a high resistance to elongation and wear, enhancing the double spiral quick freezer’s service life and stability
  • Fitted with a conveyor belt monitoring device to check the belt's working status continuously, preventing unnecessary losses due to belt malfunctions
Double Spiral Quick Freezer
Specifications
Cage Diameter 1620-5800mm
Layers of Conveyor Belt Level 6-40
Belt Width 520-1220mm
Belt Material 304/POM
Infeed Belt Length 500mm
Outfeed Belt Length 500mm
Control Cabinet Control panel with PLC touch screen control, 304 stainless steel enclosure
Refrigerant Freon, ammonia, carbon dioxide
Evaporator Aluminum/stainless steel tube, aluminum/aluminum-magnesium alloy fins
Defrosting Method Water flushing/hot air defrosting
Freezer/Cooldown Time Adjustable with variable frequency
Conveyor Belt Cleaning CIP
  • Double Spiral Quick Freezer
  • Double Spiral Quick Freezer
  • Double Spiral Quick Freezer
Optional Construction Type

Depending on the relative position of the cage and the evaporator, the layout of the double spiral quick freezer can be classified into type A, B, and C.

Applications
  • Double Spiral Quick Freezer
  • Double Spiral Quick Freezer
  • Double Spiral Quick Freezer
  • Double Spiral Quick Freezer
Project Cases
  • Double Spiral Quick Freezer for Octogone

    Spiral Quick Freezer

    We have a history of providing large-scale projects for Southeast Asian enterprises in China. Phase one of the project comprised a quick-freezing warehouse, static pickling room, water chiller, and additional supporting equipment while the second phase featured a double-spiral quick-freezing warehouse, 600 sq. meters of cold storage, and a quick-freezing warehouse.
