Fluidized Quick Freezer

Fluidized Quick Freezer
Fluidized Quick Freezer Fluidized Quick Freezer Fluidized Quick Freezer
Request a Quote

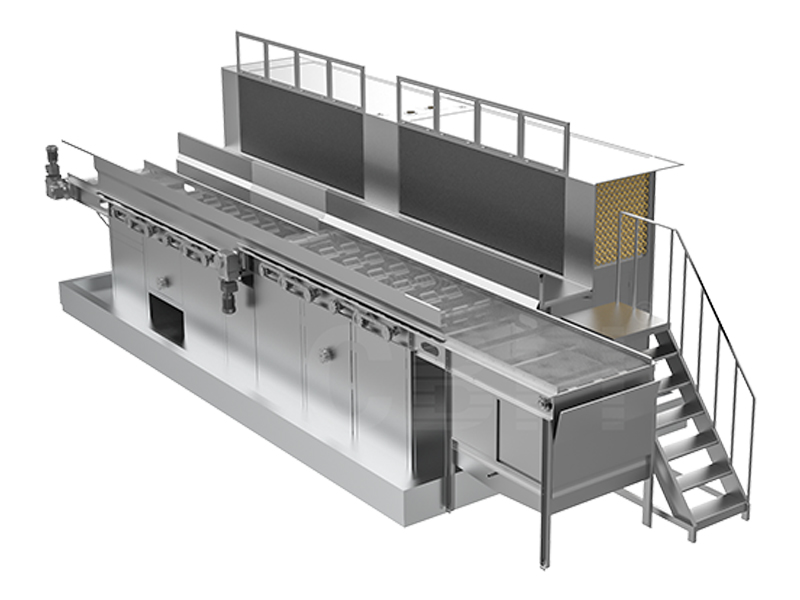

The fluidized quick freezer uses mechanical vibrations and air pressure to make products float and move on a stainless steel mesh belt, achieving rapid individual freezing and preventing clumping. With a capacity of 1000 to 5000 kilograms per hour, this freezer is ideal for individually freezing small, sliced, cubed, or diced food products such as vegetables and fruits.

Given the diverse range of food sizes and types, the freezing time can vary significantly, from 10 to 50 minutes. This quick-freeze technology is suitable for substantially extending the shelf life of products. Moreover, it greatly minimizes dehydration and shrinkage losses, thereby preserving and even enhancing the texture, color, and flavor of the frozen foods.

Features
  • Equipped with a frequency conversion device for variable speed adjustments, this feature includes dual speed belts to ensure uniform speed changes, suitable for a variety of frozen products
  • Fluidized Quick Freezer

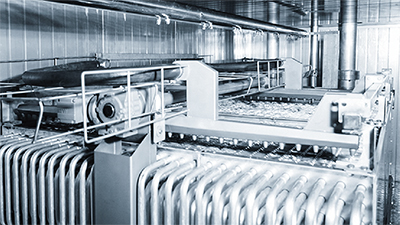

    Fitted with a low-noise, high-pressure centrifugal fan that generates a vertical high-speed, low-temperature airflow beneath the conveyor belt, creating a fluidized bed. This design also extends the intervals between defrosting, enhancing operational efficiency
  • Fluidized Quick Freezer
    Gentle Vibration Technology
    Our freezer uses a horizontal vibration mode that gently moves the food back and forth. This, combined with side-mounted air pulses, adjusts the airflow to keep different types of food particles perfectly suspended during freezing. This setup keeps the food particles suspended in a high-speed airflow during freezing, ensuring no damage or clumping.
  • Fluidized Quick Freezer
    Food-Grade Materials for Safety and Hygiene
    Every part that comes in contact with the food, like the conveyor belt, is made from high-quality SUS304 stainless steel. This not only ensures durability but also keeps everything hygienic and safe for food contact.
  • Efficient and Aesthetic Insulation
    Efficient and Aesthetic Insulation

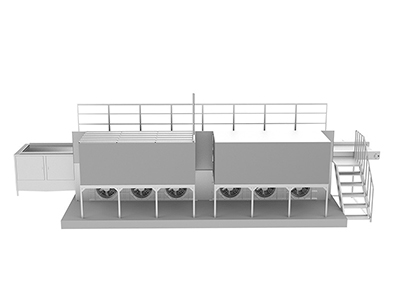

    The freezer’s walls are built with dual-sided stainless steel insulated panels, offering great thermal retention. The whole structure is supported by a modular platform with a stainless steel welded base that is leak-proof, ensuring both efficiency and an eye catching appearance.
Applications

The fluidized quick freezer is an excellent choice for individually quick freezing fruits and vegetables. It is specifically designed to handle delicate food items, ensuring that each piece retains its shape, texture, and nutritional value without clumping together. Ideal for processors looking to maintain the highest quality in their frozen produce.

  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
  • Fluidized Quick Freezer
