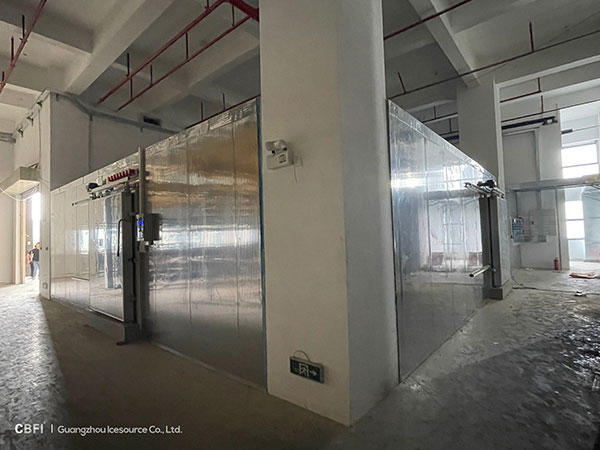

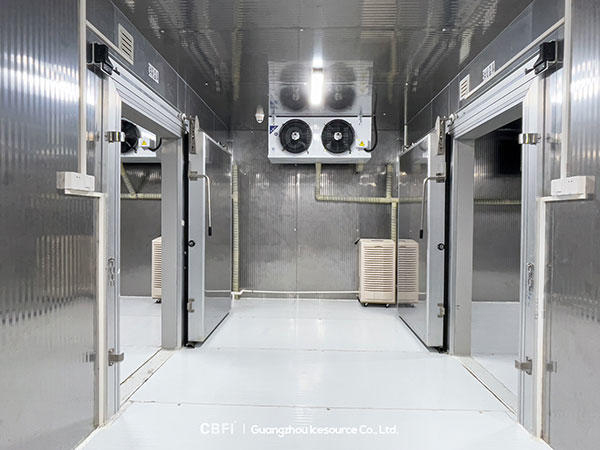

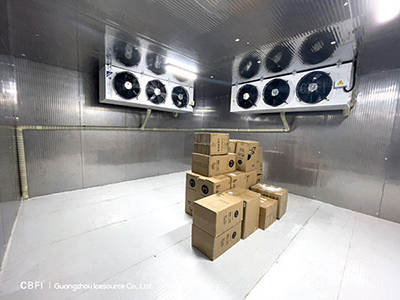

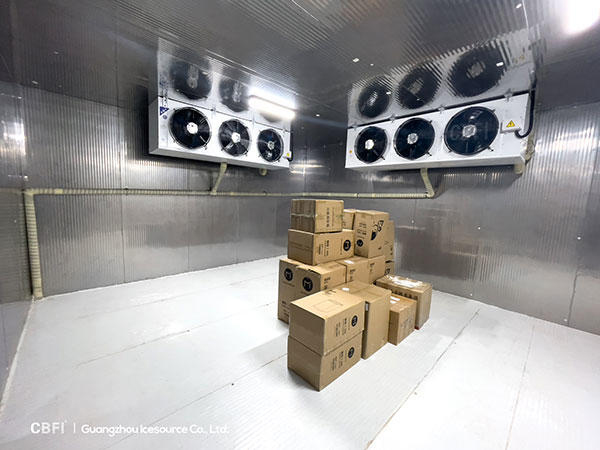

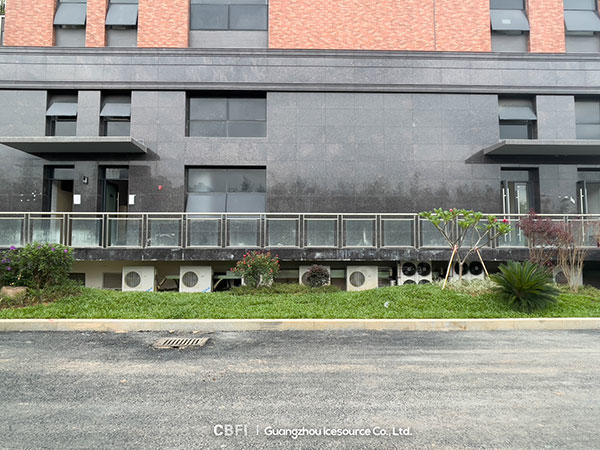

Medical Cold Storage Project

  • Medical Cold Storage Project
  • Medical Cold Storage Project
  • Medical Cold Storage Project
  • Medical Cold Storage Project
  • Medical Cold Storage Project
Project Mainly Involve Products

Medical cold storage, used for medical equipment testing and drug storage

Customer background

A leading domestic in vitro diagnostic company integrating R&D, production, sales, service, and pathological diagnosis technology education and training.

Customer Demand

128 square meters, divided into 7 cold storage + buffer compartments

Characteristics of the project

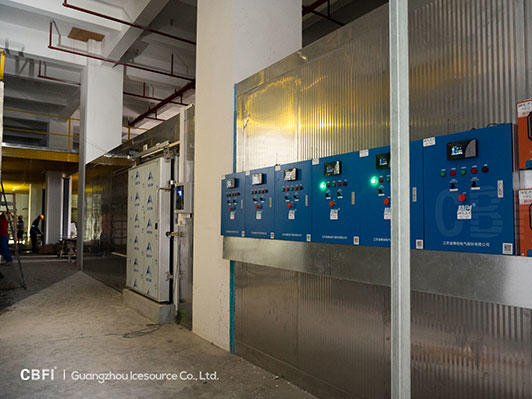

The cold storage is equipped with 2 sets of completely independent refrigeration units, one for use and the other for backup (the same configuration for 2 sets of systems), each of which needs to include compressors, condensers, evaporators, various copper pipes, cables, refrigeration accessories, etc., two sets The units can run in turn, switch automatically when failure occurs, and automatically activate the standby unit when over-temperature occurs. With automatic timing and forced defrost functions, the storage temperature is evenly controlled. The pressure refrigeration unit must guarantee a safety margin of 10% to 15% on the basis of the required refrigeration capacity. The monitoring system can observe the temperature of each warehouse at any time, understand and record the deviation between the current temperature and the set temperature. With temperature upper limit and lower limit alarm function. Automatically start or stop the operation of the cold storage.

Why choose us

The company's strength is recognized by customers, and the price is reasonable.
