Installation and Commissioning of the Rake Type Flake Ice Machine Project in Saudi Arabia

    1.  Storage Frame Installation
    2. Storage Frame Installation

      The installation process began with the construction of the storage frame, which is a crucial foundation for the overall stability of the flake ice machine. Our team carefully assembled the durable metal framework to ensure a robust structure capable of supporting the system components.

    1. Ice Storage Installation
    2. Ice Storage Installation

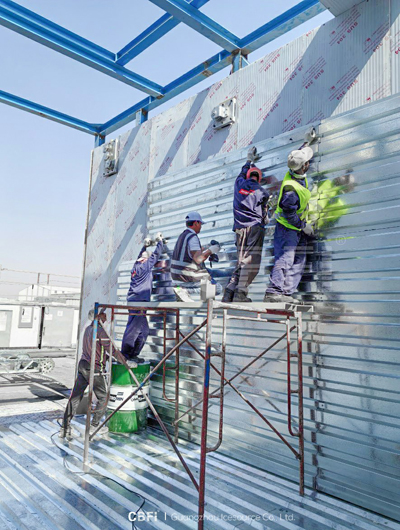

      Next, we moved on to the ice storage installation, a component that plays a vital role in preserving the quality of flake ice produced. The storage was meticulously installed with adequate insulation to maintain optimal temperatures and prevent ice from melting prematurely.

    1. Air Guide Channel Installation
    2. Air Guide Channel Installation

      To facilitate the even distribution of cold air throughout the storage, we installed the air guide channel. This carefully designed air duct system ensures that cold air reaches all parts of the ice storage, maintaining a consistent temperature for the best ice quality.

    1. Rake Teeth Installation
    2. Rake Teeth Installation

      The rake teeth, a critical part of the ice removal process, were then installed. Attention to detail was paramount as the rake teeth need to be precisely positioned to seamlessly scoop and transport the ice without damaging the flakes.

    1. Elevator Installation
    2. Elevator Installation

      The elevator was set up to efficiently move ice from the storage to the delivery area. The team made sure the elevator was installed securely and aligned correctly to facilitate smooth operations and prevent any operational hiccups.

    1. Cold Storage Fan Installation
    2. Cold Storage Fan Installation

      With the cold storage fan installation, we aimed to ensure that the cold storage environment remained at the ideal temperature. The fan units were strategically placed to circulate air effectively, contributing to the longevity and quality of the stored ice.

    1. Lifting Combination
    2. Lifting Combination

      The flake ice machine's rake system involves a mechanical structure that gathers, elevates, and stores the flake ice produced by the ice machine. During the installation process, the rake assembly is carefully hoisted into place within the ice storage bin. This system utilizes a series of interconnected rakes that are strategically positioned to ensure the even distribution and storage of flake ice. Once positioned, the rakes are secured and connected to the driving mechanism, completing the installation process.

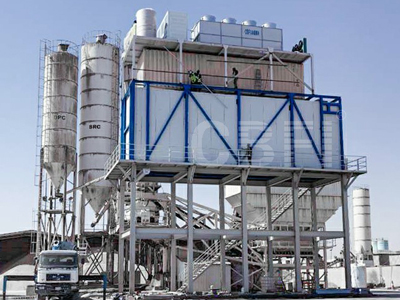

    1. Aesthetic Display
    2. Aesthetic Display

      Once all functional components were installed, we focused on the exterior presentation of the ice machine. We ensured that all panels and covers were securely in place, giving the machine a polished and professional appearance.

    1. Machine Commissioning
    2. Machine Commissioning

      The final and most critical phase was the commissioning of the flake ice machine. Our engineers meticulously calibrated and tested every aspect of the flake ice machine to ensure optimal performance. This included configuring the control systems, testing the ice-producing capabilities, and fine-tuning the storage conditions.

In conclusion, the professional installation and commissioning by our engineers ensured the machine was up and running smoothly, swiftly transitioning into production mode. The client expressed great satisfaction with the efficiency of the setup and the quality of the produced flake ice, ready for use in their various applications.
