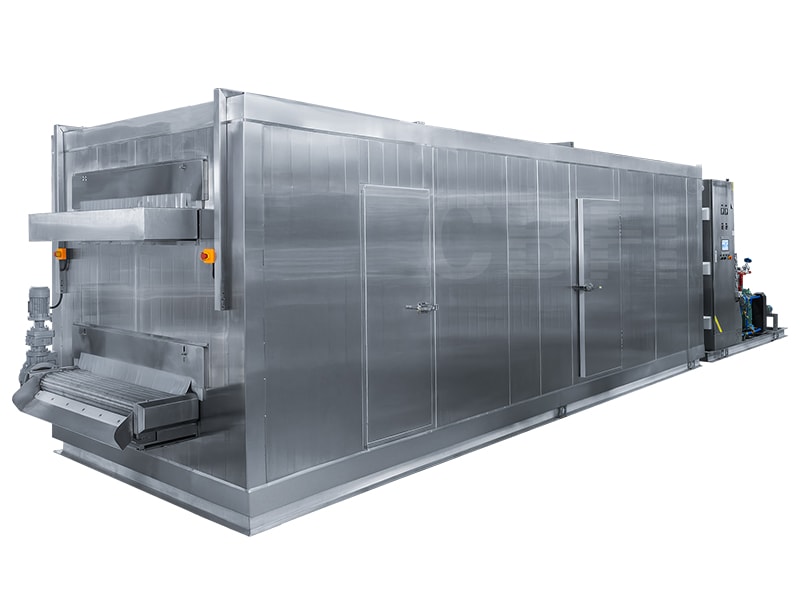

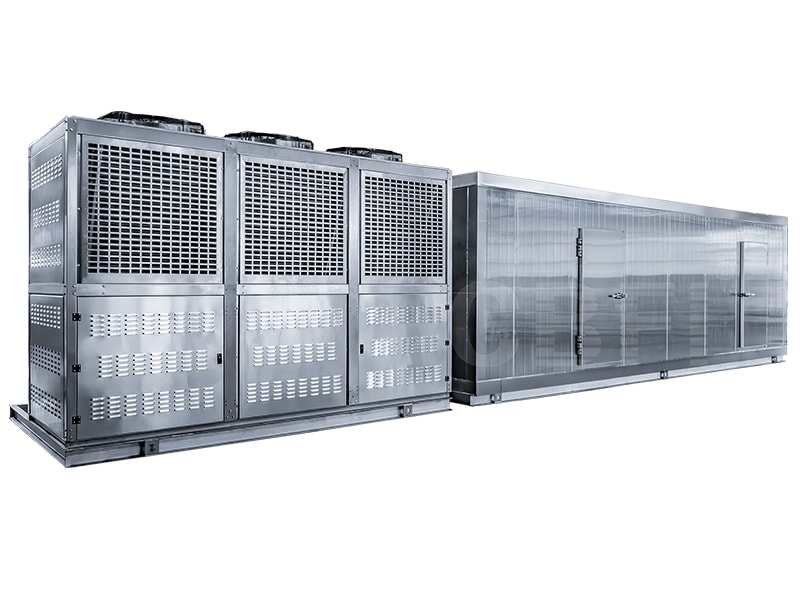

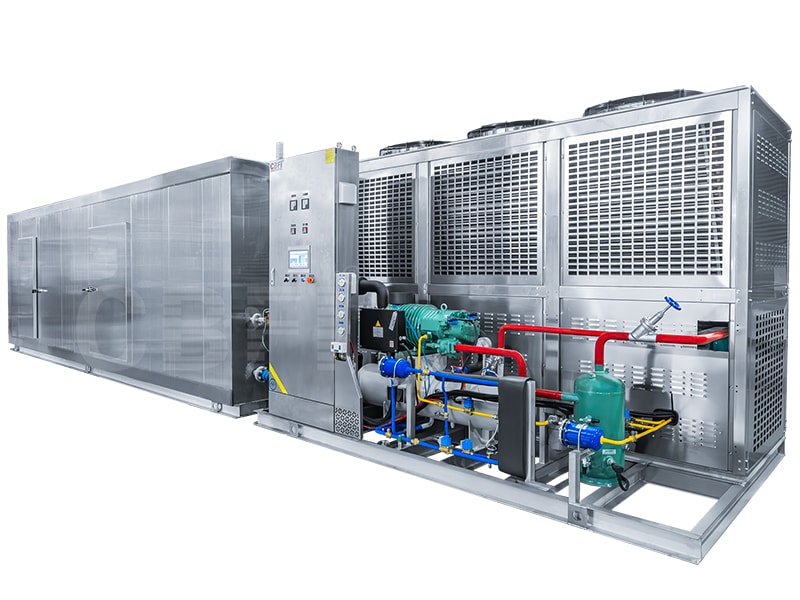

Integrated Quick Freezer
The integrated quick freezer is reliable, efficient and energy-saving refrigeration equipment that is designed to achieve 100-300kg/h capacity for small- and medium-scale production and enable continuous production.
The integrated quick freezer is ideal for small- and medium-scale production lines handling multiple SKUs and small batches, providing customers with efficient, high-quality quick-freezing solutions.
Features
- The integrated quick freezer is capable of freezing at temperatures down to -35°C. The reciprocating turnover mechanism helps achieve fine, uniform ice crystals. With the integrated quick freezer, the moisture content is better preserved compared to traditional freezer.
- The integrated modular design leaves no need for site construction, saving up to 40% of floor space (24 m2 installed area). On-site welding is not required for plug-and-play operation. The complete unit can be relocated easily, enabling flexible production line configuration.
- Intelligent control system supports one-touch start-up, automatic loading and unloading and automatic defrosting and is easy to operate.

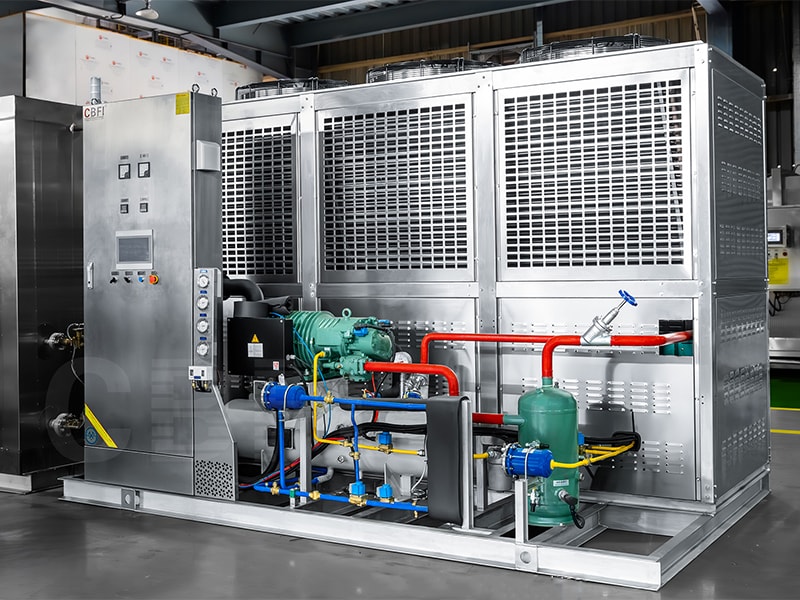

- The integrated quick freezer adopts 120mm high-density polyurethane insulated panels, heavy-duty fins and German-brand Bitzer screw compressor, achieving minimal heat gain and efficient heat transfer. The integrated quick freezer delivers powerful, stable and continuous cooling with excellent energy efficiency, enabling reliable long-term operation.
- The integrated quick freezer is equipped with 304 stainless steel mesh belt (plastic mesh belt optional) with quick-change design and automatic defrosting, enabling easy cleaning and maintenance.
- Full-penetration welds with polished finish. All in compliance with ASME requirements.
- The electrical enclosure design protects sensitive components from dust. The IP55 rating indicates protection against water and dust.
Technical Specifications
| Applicable products | Ready-to-cook meals / prepared foods, meat products, seafood, pastries, fruits, and vegetables, etc. |
| Compressor | Bitzer screw compressor |
| Effective freezing area | 3500mm (L) × 1200mm (W), 4 Layers |
| Freezing/feed/ discharge temperature | ≤-35℃ (adjustable) / ≤+25℃ / ≤-18℃ |
| Processing capacity | 200 kg/h (depending on product types) |
| Refrigerant | Freon |
| Cooling system | Air cooling |
| Defrosting system | Water defrost |
| Power supply | Configured according to local voltage requirements |
| Max. machine dimensions | 10,800mm(L)× 2,200mm (W) × 2,300mm (H) |
